Funktionsgenerator Modul FG 200

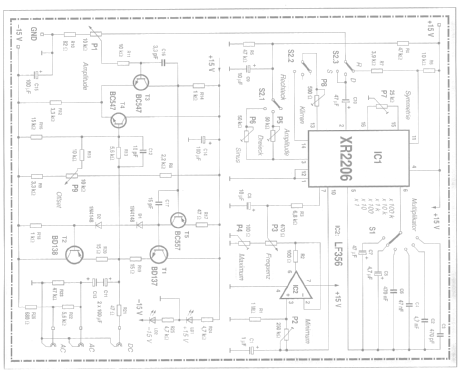

Funktionsgenerator Modul FG 200; Conrad Electronic (ID = 2001161) Kit
Funktionsgenerator Modul FG 200; Conrad Electronic (ID = 2000984) Kit Funktionsgenerator Modul FG 200; Conrad Electronic (ID = 2000985) Kit
Funktionsgenerator Modul FG 200; Conrad Electronic (ID = 2000988) Kit
Use red slider bar for more.
Funktionsgenerator Modul FG 200; Conrad Electronic (ID = 2000984) Kit
Conrad Electronic: Funktionsgenerator Modul FG 200 [Kit] ID = 2000984 1400x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Funktionsgenerator Modul FG 200, Conrad Electronic (Voltcraft), Radio-Conrad, Conrad & Co; Berlin, Hirschau

Country:  Germany
Manufacturer / Brand:  Conrad Electronic (Voltcraft), Radio-Conrad, Conrad & Co; Berlin, Hirschau
Brand

Voltcraft
Year: 1991 Category: Kit (Parts plus instruction) or building instructions only
Semiconductors (the count is only for transistors) 5: XR2206 LF356 BD137 BD138 BC547 BC547 BC557
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit. / +/- 15 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Funktionsgenerator Modul FG 200 - Conrad Electronic Voltcraft,
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 199 x 63 x 30 mm / 7.8 x 2.5 x 1.2 inch
Notes

Funktion:                       Funktionsgenerator für Sinus-, Dreieck- und Rechtecksignale

Frequenzbereich:          0,2Hz...200kHz (in sechs Bereichen)

Ausgang:                       DC:  100mV...10V (50Ohm)

                                      AC:   100mV...12V (auch -20dB)

Einsteller:                      Betriebsart, Frequenz grob/fein sowie Amplitude und DC-Offset +/-2V

Versorgungsspannung:  +/- 15V  (25mA Ruhestrom)





Net weight (2.2 lb = 1 kg) 0.220 kg / 0 lb 7.8 oz (0.485 lb)
Price in first year of sale 79.50 DM

Model page created by Oskar Elm. See "Data change" for further contributors.
