Concerton V25

Concerton V25; Stern & Stern (ID = 952249) Radio Concerton V25; Stern & Stern (ID = 952250) Radio
Concerton V25; Stern & Stern (ID = 952251) Radio Concerton V25; Stern & Stern (ID = 952252) Radio
Concerton V25; Stern & Stern (ID = 952532) Radio Concerton V25; Stern & Stern (ID = 952533) Radio
Concerton V25; Stern & Stern (ID = 1292313) Radio Concerton V25; Stern & Stern (ID = 1988126) Radio

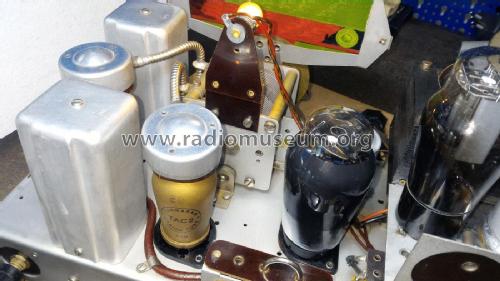

Concerton V25; Stern & Stern (ID = 2093652) Radio
Use red slider bar for more.
Concerton V25; Stern & Stern (ID = 952249) Radio
Stern & Stern: Concerton V25 [Radio] ID = 952249 933x695
Select picture or schematic to display from thumbnails on the right and click for download.
For model Concerton V25, Stern & Stern (Concerton / Conserton), S&S; Stockholm

Country:  Sweden
Manufacturer / Brand:  Stern & Stern (Concerton / Conserton), S&S; Stockholm
Year: 1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: AF3 AC2 AL4 506
schematic requested
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 140; 220; 240 Volt
Loudspeaker Presumably Dynamic Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: Concerton V25 - Stern & Stern Concerton /
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 540 x 290 x 220 mm / 21.3 x 11.4 x 8.7 inch
Price in first year of sale 230.00 SEK
Source of data -- Original prospect or advert

Model page created by Anders Söderström. See "Data change" for further contributors.
