- Country
- France
- Manufacturer / Brand
- Continental Edison, Compagnie Continentale Édison; Paris
- Year
- 1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 160481
Ebay auction 370249813330 dufdan0245
Ebay auction 370249813330 dufdan0245
Ebay auction 370249813330 dufdan0245

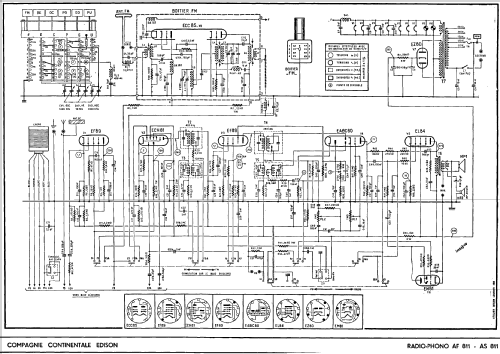

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 480/10800 kHz
- Tuned circuits
- 7 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 120; 130; 220; 240 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

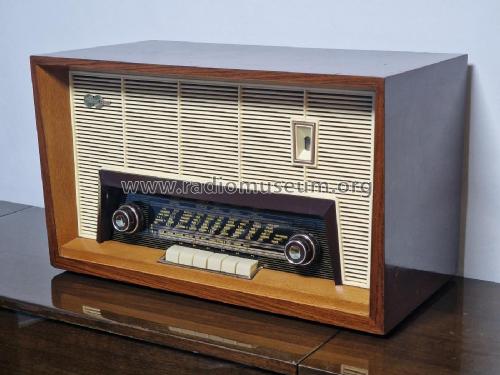

- Model: AF811 - Continental Edison, Compagnie
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 570 x 330 x 300 mm / 22.4 x 13 x 11.8 inch
- Notes
-

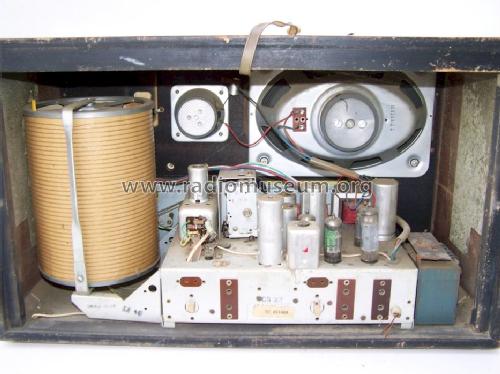

5 gammes d'ondes: GO de 1170 à 1950 m, PO de 187 à 578 m, OC de 17 à 51 m, BE (bande étalée) de 46 à 51.5 m et FM de 86.5 à 191 MHz. Étage HF. Cadre à air blindé et antennes FM - OC incorporés. Deux HP dont un spécial aiguës et un elliptique.
Coffret chêne clair ou nover verni, façade plastique.
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by a member from A. See "Data change" for further contributors.
