AM4

AM4 ; Admiral brand (ID = 466241) Radio
Use red slider bar for more.
AM4 ; Admiral brand (ID = 466241) Radio

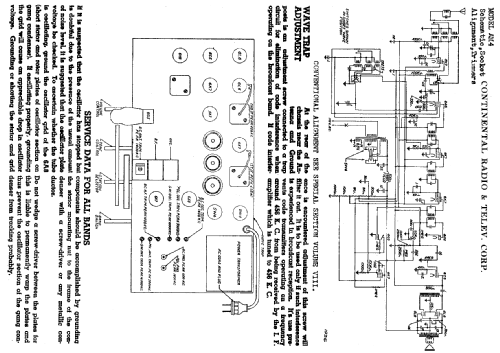

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Admiral (brand) Continental Radio & Television Co.; Chicago, IL
alternative name

Continental Radio & TV
Year: 1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 12: 6K7 6A8 6K7 6K7 6G5 6K7 6H6 6C5 6L6 6L6 5W4 5W4
Main principle Superhet with RF-stage; ZF/IF 456 kHz
Tuned circuits 9 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: AM4 - Admiral brand Continental
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 11 = ca. 1940 and before
