Imperial  J 501W

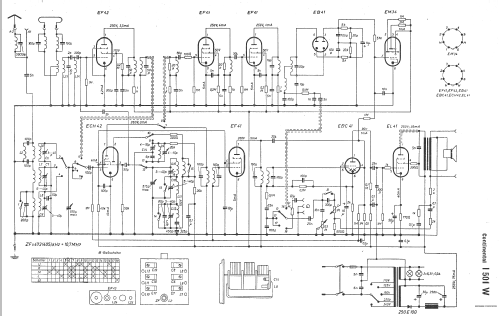

Imperial  J 501W; Continental-Rundfunk (ID = 12233) Radio

Imperial  J 501W; Continental-Rundfunk (ID = 13712) Radio

Imperial  J 501W; Continental-Rundfunk (ID = 654316) Radio

Imperial  J 501W; Continental-Rundfunk (ID = 291880) Radio

Imperial  J 501W; Continental-Rundfunk (ID = 743912) Radio

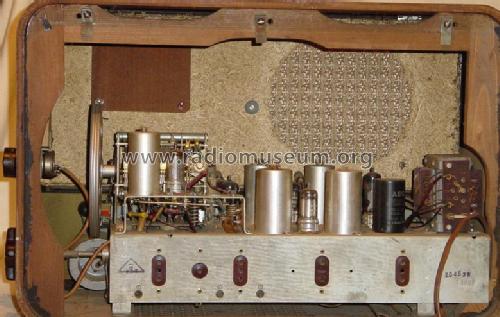

Imperial  J 501W; Continental-Rundfunk (ID = 31107) Radio Imperial  J 501W; Continental-Rundfunk (ID = 31108) Radio
Imperial  J 501W; Continental-Rundfunk (ID = 31109) Radio Imperial  J 501W; Continental-Rundfunk (ID = 498189) Radio
Imperial  J 501W; Continental-Rundfunk (ID = 498190) Radio Imperial  J 501W; Continental-Rundfunk (ID = 498795) Radio
Imperial  J 501W; Continental-Rundfunk (ID = 498796) Radio Imperial  J 501W; Continental-Rundfunk (ID = 498798) Radio

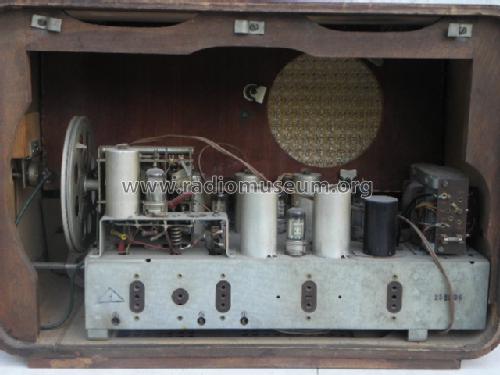

Imperial  J 501W; Continental-Rundfunk (ID = 498800) Radio Imperial  J 501W; Continental-Rundfunk (ID = 1718329) Radio
Use red slider bar for more.
Imperial  J 501W; Continental-Rundfunk (ID = 31107) Radio
Continental-Rundfunk: Imperial  J 501W [Radio] ID = 31107 752x570
Select picture or schematic to display from thumbnails on the right and click for download.
For model Imperial  J 501W, Continental-Rundfunk GmbH (Stassfurter Imperial); Osterode/Harz

Country:  Germany
Manufacturer / Brand:  Continental-Rundfunk GmbH (Stassfurter Imperial); Osterode/Harz
Year: 1951/1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: EF42 ECH42 EF41 EF41 EM34 EF41 EB41 EBC41 EL41
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 472/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Imperial  J 501W - Continental-Rundfunk GmbH
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 550 x 360 x 280 mm / 21.7 x 14.2 x 11 inch
Notes AM-ZF auch 485 kHz möglich.
Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)
Price in first year of sale 398.00 DM
External source of data Erb
Source of data Kat.d.Rundf.GrossH.1952/53 / Radiokatalog Band 2, Ernst Erb

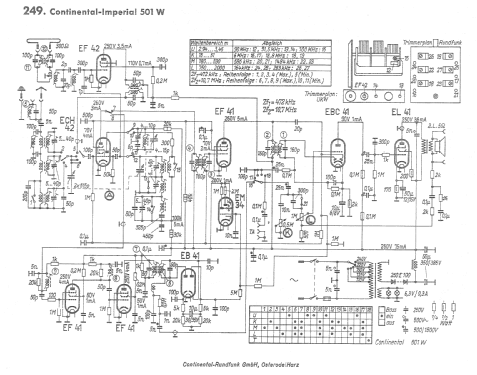

Literature/Schematics (1) Funkschau (JG 1951/52 Plan Nr.:249)


All listed radios etc. from Continental-Rundfunk GmbH (Stassfurter Imperial); Osterode/Harz
Here you find 142 models, 125 with images and 86 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
