Imperial J 653W

Imperial J 653W; Continental-Rundfunk (ID = 12243) Radio

Imperial J 653W; Continental-Rundfunk (ID = 12244) Radio

Imperial J 653W; Continental-Rundfunk (ID = 1021109) Radio

Imperial J 653W; Continental-Rundfunk (ID = 1021111) Radio
Imperial J 653W; Continental-Rundfunk (ID = 2337716) Radio Imperial J 653W; Continental-Rundfunk (ID = 2337718) Radio
Imperial J 653W; Continental-Rundfunk (ID = 2337721) Radio Imperial J 653W; Continental-Rundfunk (ID = 105077) Radio
Imperial J 653W; Continental-Rundfunk (ID = 105080) Radio Imperial J 653W; Continental-Rundfunk (ID = 105081) Radio

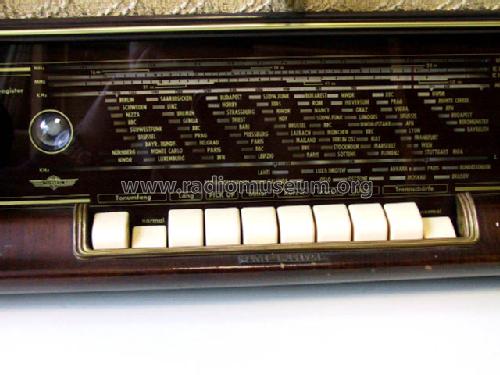

Imperial J 653W; Continental-Rundfunk (ID = 105078) Radio Imperial J 653W; Continental-Rundfunk (ID = 105079) Radio

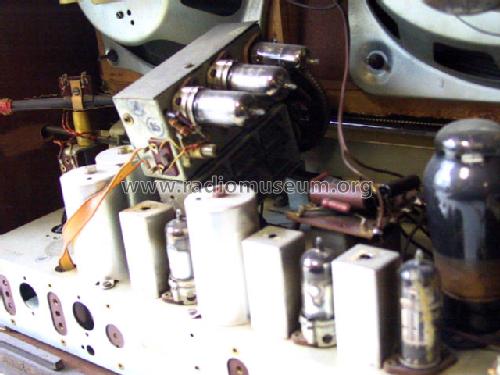

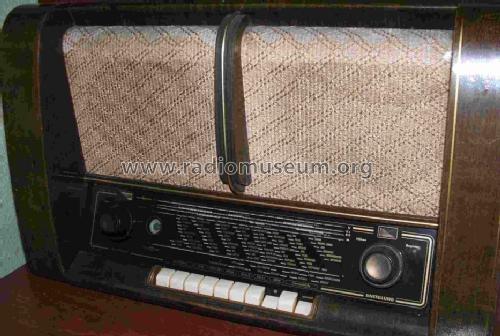

Imperial J 653W; Continental-Rundfunk (ID = 105082) Radio Imperial J 653W; Continental-Rundfunk (ID = 599412) Radio
Use red slider bar for more.
Imperial J 653W; Continental-Rundfunk (ID = 2337716) Radio
Continental-Rundfunk: Imperial J 653W [Radio] ID = 2337716 1400x835
Select picture or schematic to display from thumbnails on the right and click for download.
For model Imperial J 653W, Continental-Rundfunk GmbH (Stassfurter Imperial); Osterode/Harz:

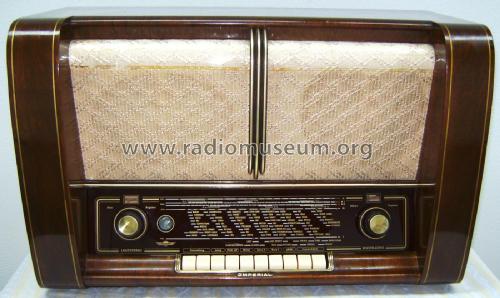

Continental Imperial J653W Hauptansicht

Country:  Germany
Manufacturer / Brand:  Continental-Rundfunk GmbH (Stassfurter Imperial); Osterode/Harz
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: EF42 EF42 EC92 EF41 EM34 ECH81 EF43 EAF42 EABC80 EL12
Main principle Superhet with RF-stage; ZF/IF 454 or 472/10700 kHz
Tuned circuits 9 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Imperial J 653W - Continental-Rundfunk GmbH
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 650 x 410 x 300 mm / 25.6 x 16.1 x 11.8 inch
Notes UKW-Eingangsteil mit Vorstufe und fremdgesteuerter Mischstufe.
Ferritantenne mit separater HF-Vorstufe ist nur bei Mittelwelle in Funktion. Die anderen AM-Bereiche arbeiten ohne HF-Vorverstärkung.

FM section with rf amplifier, separate local oscillator and mixing stage.
On AM, rf amplifier combined with feritte antenna works only for MW/BC.
Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
Price in first year of sale 512.00 DM
External source of data Erb
Source of data Kat.d.Rundf.GrossH.1953/54 / Radiokatalog Band 2, Ernst Erb
Mentioned in Funkschau (Schaltungssammlung Nr. 21)
Literature/Schematics (1) Lange, Schaltungen der Funkindustrie (Band 2)
