- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Courtenay (Brand); Various manufacturers
- Year
- 1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 340063

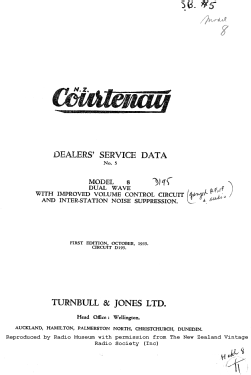

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 465 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 3 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 8 - Courtenay Brand; Various
- Shape
- Tablemodel, with any shape - general.
- Notes
-
6-Valve superhet with RF stage dual wave table model receiver.
Succssor to Courtenay Model 108.
- Mentioned in
- -- Original prospect or advert (Hawkes Bay Tribune 21 August 1935 Page 8)
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
