- Country
- Australia
- Manufacturer / Brand
- Crammond Radio Manufacturing Co. PTY.(Melton & Co.); Brisbane
- Year
- 1946/1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 178127

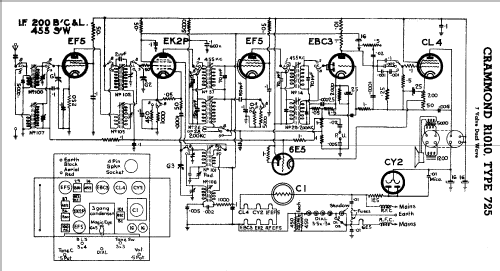

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 455/200 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: R1010 type 725 - Crammond Radio Manufacturing
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- This model uses two I.F. frequencies and two sets of I.F. transformers. The 455 kHz ones are used on short wave and the 200 kHz ones are used on medium wave. There are two selectivity settings on medium wave.
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. V
- Literature/Schematics (1)
- Mingay's Radio Diagram & I.F. Index
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
- Other Models
-
Here you find 59 models, 16 with images and 24 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Crammond Radio Manufacturing Co. PTY.(Melton & Co.); Brisbane
