• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Cromwell, Gulbransen (NZ), Pacemaker, (Brands) Clarke, H. W.; Wellington

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 363256

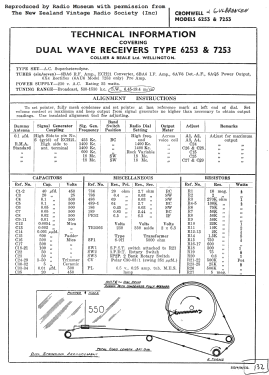

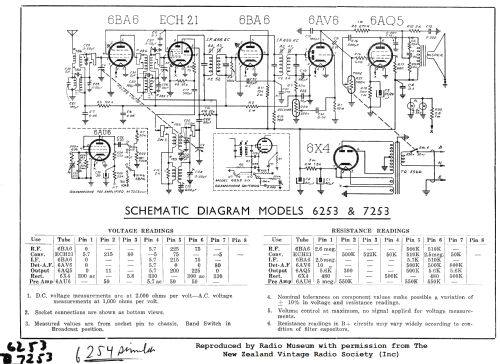

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6BA6 ECH42 6BA6 6AV6 6AQ5 6X4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 50 Hz, 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Gulbransen 6254 - Cromwell, Gulbransen NZ,

• Shape
• Tablemodel, with any shape - general.

• Notes

• Gulbransen 6254

  6-Valve dual wave superhet with RF stage mantel receiver with 6x9H elliptical speaker. £39/17/6

  See also Cromwell 6254 and State 6254.

  Manufactured by Collier & Beale Ltd.

• Price in first year of sale
• 39.88 NZ £

• Mentioned in
• -- Original prospect or advert (Taupo Times 15 July 1955 Page 8)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.

• Other Models

• Here you find 145 models, 142 with images and 132 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Cromwell, Gulbransen (NZ), Pacemaker, (Brands) Clarke, H. W.; Wellington
