• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Cromwell, Gulbransen (NZ), Pacemaker, (Brands) Clarke, H. W.; Wellington

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 363609

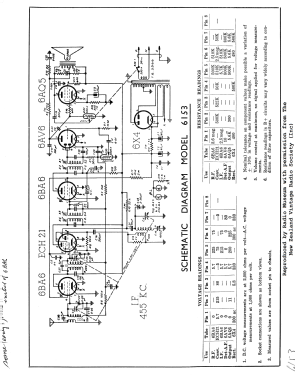

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6BA6 ECH21 6BA6 6AV6 6AQ5 6X4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 50 Hz, 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: Sylvia 6154 - Cromwell, Gulbransen NZ,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 560 x 310 x 210 mm / 22 x 12.2 x 8.3 inch

• Notes

• Sylvia 6154

  6-valve broadcast (MW) superhet with RF stage mantel receiver. Manufactured by Collier & Beale Ltd for L. D. Nathan Ltd.

  Uses a similar chassis to Cromwell 6154 and Gulbransen 6153.

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
