Super Sextette 649D DeLuxe Ch= 649

Super Sextette 649D DeLuxe Ch= 649; Crosley Radio Corp.; (ID = 1362028) Radio

Super Sextette 649D DeLuxe Ch= 649; Crosley Radio Corp.; (ID = 1362029) Radio

Super Sextette 649D DeLuxe Ch= 649; Crosley Radio Corp.; (ID = 1362030) Radio

Super Sextette 649D DeLuxe Ch= 649; Crosley Radio Corp.; (ID = 1362032) Radio

Super Sextette 649D DeLuxe Ch= 649; Crosley Radio Corp.; (ID = 1361185) Radio

Super Sextette 649D DeLuxe Ch= 649; Crosley Radio Corp.; (ID = 1361186) Radio
Super Sextette 649D DeLuxe Ch= 649; Crosley Radio Corp.; (ID = 1359670) Radio Super Sextette 649D DeLuxe Ch= 649; Crosley Radio Corp.; (ID = 1359671) Radio
Super Sextette 649D DeLuxe Ch= 649; Crosley Radio Corp.; (ID = 1821951) Radio
Use red slider bar for more.
Super Sextette 649D DeLuxe Ch= 649; Crosley Radio Corp.; (ID = 1359670) Radio

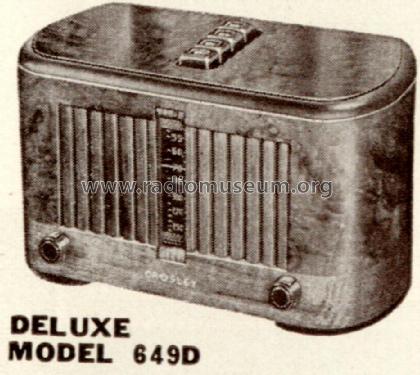

Crosley Radio Corp.;: Super Sextette 649D DeLuxe Ch= 649 [Radio] ID = 1359670 933x833
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super Sextette 649D DeLuxe Ch= 649, Crosley Radio Corp.; Cincinnati (OH):
Scanned from the Crosley Folder No. 2451B, Season 1939/40.

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1939/1940 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A8GT 6U7G 6Q7G 25A6G or 25L6G 25Z6G
Semiconductors (the count is only for transistors) W-46773
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / AC 25 cycles, 100 to 125V or 50 to 60 cycles, 100 to 125V or DC 100 to 125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Super Sextette 649D DeLuxe Ch= 649 - Crosley Radio Corp.;
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 12.75 x 7.75 x 6.5 inch / 324 x 197 x 165 mm
Notes

The Crosley Super Sextette 649D DeLuxe is an AC/DC operated 5 tube superheterodyne BC band receiver.  The BC band tuning range is from 540 to 1725kHz.  Uses ballast tube W-46773 (Named in the tube list but not counted in the tube count).  Model 649D is part of the 649 model family, which all use the 649 chassis and have a built-in loop antenna.  Crosley advertising promoted the 649 model family with the statement: "Newly developed loop antenna is built-in".  The 649 model family was derived from the Crosley 648 model family, which did not have the internal loop antenna but instead required an external antenna.  The 648 model family also had a 455kHz wavetrap installed on some models, but the Crosley 649 family literature does not show the wavetrap option.  The 649 family also list a 6A8GT oscillator/modulator tube while the 648 family list a 6A8G tube.

These models have 4 large push buttons used for station selection and have a gold etched vertical dial.  The Crosley model 649A is in Brown, model 649B in Ivory, model 649C in Red, model 649D DeLuxe (in Walnut Veneer wooden cabinet), model 649E in Blue and model 649F in Tan. The same cabinet and colors apply for the 648 model family.  The Crosley model 5648 is part of the 649 family and has a wooden cabinet but uses chassis 5648, which has a slightly different built-in loop antenna and the addition of an electrostatic shield (It also has a smaller tuning range of 540 to 1550kHz).

The 649 model family (along with model 5648) were also available for use with a 25 cycle, 100 to 125V power source, where a 100 ohm, 2w resistor was added to the chassis along with the substitution of a larger 60uF filter capacitor in the power supply circuit.
Please look up common information here for this season.

Price in first year of sale 19.99 $
Mentioned in Table Top Radios Vol. 4 Stein 2003 (page 70.)
Literature/Schematics (1) Crosley Radio Service Manual (Crosley Radio Service Manual 1943 and Earlier, Pages 347-348)
Literature/Schematics (2) - - Manufacturers Literature (Crosley Sevice Supplement No. 217)
Literature/Schematics (3) Crosley Folder No. 2451B, Season 1939/40.
Literature/Schematics (4) Rider's Perpetual, Volume 11 = ca. 1940 and before (Riders Crosley 11-21, 22)

Model page created by Ernst Erb. See "Data change" for further contributors.
