66TC

• Country
• United States of America (USA)

• Manufacturer / Brand
• Crosley Radio Corp.; Cincinnati (OH)

• Year
• 1945/1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 36921

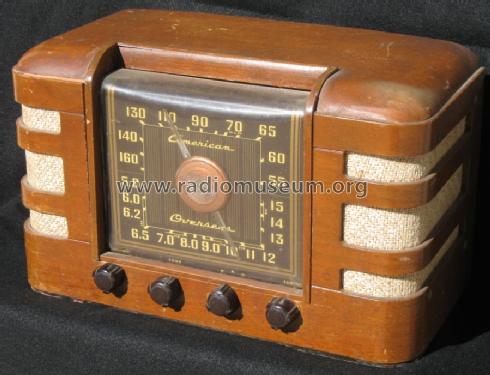

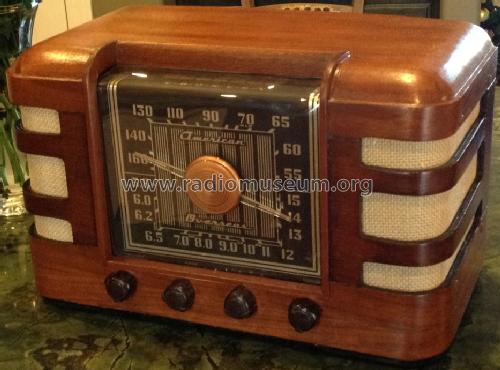

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6SK7GT 6SA7GT 6SK7GT 6SQ7 6V6GT 5Y3GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 4.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 66TC - Crosley Radio Corp.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 16 x 9.75 x 7.875 inch / 406 x 248 x 200 mm

• Notes
• The 66TC consums 65 watts. Sams photofact folder 465-15 date 10-46 features the Crosley models 66TA, 66TW and 66TC as the same schematic. The differences are material and wave bands. The others are showing bakelite cases and 66TA has an additional police band.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Folder 465-15 date 10-46)

• Literature/Schematics (2)
• Radio Retailing (Radio & Television R.) (January 1946 page 36.)
