155

155; Crosley AvCo Italy (ID = 1196836) Radio 155; Crosley AvCo Italy (ID = 1196837) Radio
155; Crosley AvCo Italy (ID = 1196838) Radio 155; Crosley AvCo Italy (ID = 1196841) Radio
155; Crosley AvCo Italy (ID = 1196842) Radio 155; Crosley AvCo Italy (ID = 1196843) Radio
155; Crosley AvCo Italy (ID = 1196844) Radio
Use red slider bar for more.
155; Crosley AvCo Italy (ID = 1196836) Radio
Crosley AvCo Italy: 155 [Radio] ID = 1196836 900x515
Select picture or schematic to display from thumbnails on the right and click for download.
For model 155, Crosley AvCo Italy

Country:  Italy
Manufacturer / Brand:  Crosley AvCo Italy
Year: 1952 ?? Category: Broadcast Receiver - or past WW2 Tuner

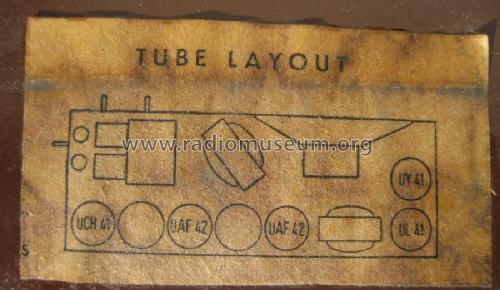

Valves / Tubes 5: UCH41 UAF42 UAF42 UL41 UY41
Main principle Superheterodyne (common)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 110; 125; 140; 160; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 155 - Crosley AvCo Italy
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes

Made in Italy - USA - Forn No. 19952N.

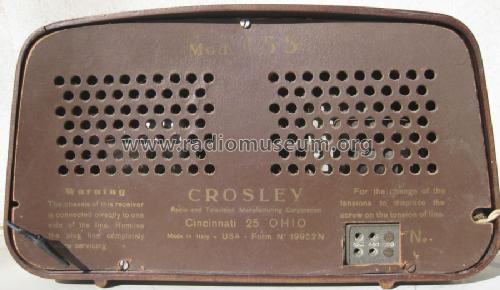

Dial in Italian language, back cover in English.

See also this similar Crosley unkown model, with magic eye DM70.

Model page created by Mark Hippenstiel. See "Data change" for further contributors.



All listed radios etc. from Crosley AvCo Italy
Here you find 26 models, 13 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
