For model B-599 ch= 646-FH, Crosley Radio Corp.; Cincinnati (OH):

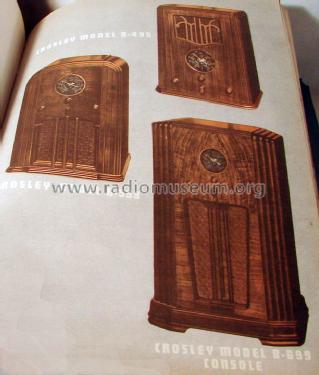

From Crosley catalog.
Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1935/1936 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 34 1C6 34 1B5 30 19
Main principle Superhet with RF-stage; ZF/IF 450 kHz; 2 AF stage(s)
Wave bands Broadcast, Short Wave(s) and Police.
Power type and voltage Storage and/or dry batteries / 2 & 9 & 135 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 inch = 17.8 cm
Power out 1.6 W (unknown quality)
from Model: B-599 ch= 646-FH - Crosley Radio Corp.;
Material Wooden case
Shape Tablemodel, with any shape - general.

Chassis and tube layout are the same for Crosley models B-495 (646-E), B-599 (646-FH) and B-699 Console (646-NH).

Circuit diagram reference Rider's Perpetual, Volume 7 = 1936 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
