B-699 Console ch= 646-NH

B-699 Console ch= 646-NH; Crosley Radio Corp.; (ID = 1152185) Radio

B-699 Console ch= 646-NH; Crosley Radio Corp.; (ID = 1152186) Radio
B-699 Console ch= 646-NH; Crosley Radio Corp.; (ID = 1628018) Radio B-699 Console ch= 646-NH; Crosley Radio Corp.; (ID = 1150060) Radio
Use red slider bar for more.
B-699 Console ch= 646-NH; Crosley Radio Corp.; (ID = 1628018) Radio
Crosley Radio Corp.;: B-699 Console ch= 646-NH [Radio] ID = 1628018 933x1095
Select picture or schematic to display from thumbnails on the right and click for download.
For model B-699 Console ch= 646-NH, Crosley Radio Corp.; Cincinnati (OH):
From Crosley catalog.

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1935/1936 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 34 1C6 34 1B5 30 19
Main principle Superhet with RF-stage; ZF/IF 450 kHz; 2 AF stage(s)
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Storage and/or dry batteries / 2 & 9 & 135 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 inch = 17.8 cm
Power out 1.6 W (unknown quality)
from Radiomuseum.org Model: B-699 Console ch= 646-NH - Crosley Radio Corp.;
Material Wooden case
Shape Console with any shape - in general
Notes

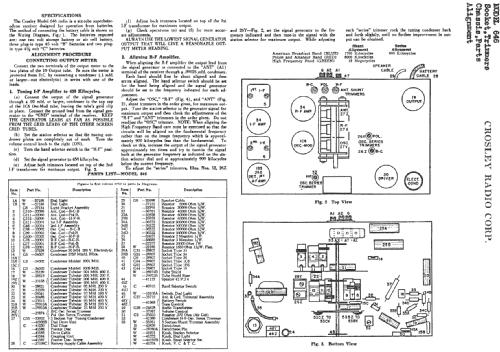

Chassis and tube layout are the same for Crosley models B-495 (646-E), B-599 (646-FH) and B-699 Console (646-NH).

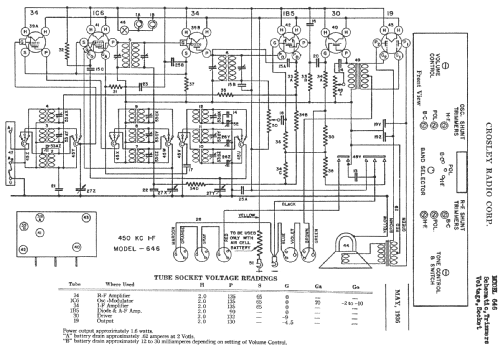

Circuit diagram reference Rider's Perpetual, Volume 7 = 1936 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
