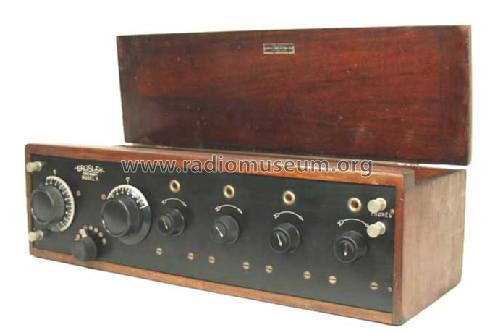

For model X (10) Arrow knobs, Crosley Radio Corp.; Cincinnati (OH)

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1922 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UV201 UV200 or UV201 UV201 UV201
Main principle TRF without regeneration
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: X [Arrow knobs] - Crosley Radio Corp.;
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 550 x 160 x 220 mm / 21.7 x 6.3 x 8.7 inch
Notes Two dials (primary tuning control knobs). 6 ohm rheos point to the use of UV201s. For UV201As (0.25 A) a higher resistance would be more suitable. This is actually a combination of "Harko Sr." plus "R.F.T.A." plus "Two-Step Amplifier". The model X costs in 1922 only one $ less than if somebody would have bought the three single units. That was a good argument to keep such parts and to buy one or two units more to achieve a better result instead of giving back a unit because of the diffigulties in this time of high sunspot interference when sets without regeneration had poor and only local reception.
Price in first year of sale 55.00 $
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Mentioned in Collector's Guide to Antique Radios 4. Edition


All listed radios etc. from Crosley Radio Corp.; Cincinnati (OH)
