Ferrando U 317-2

Ferrando U 317-2; Czeija, Nissl & Co., (ID = 7995) Radio

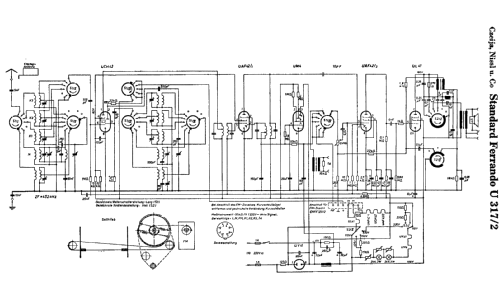

Ferrando U 317-2; Czeija, Nissl & Co., (ID = 1029504) Radio
Ferrando U 317-2; Czeija, Nissl & Co., (ID = 1340522) Radio Ferrando U 317-2; Czeija, Nissl & Co., (ID = 1340523) Radio

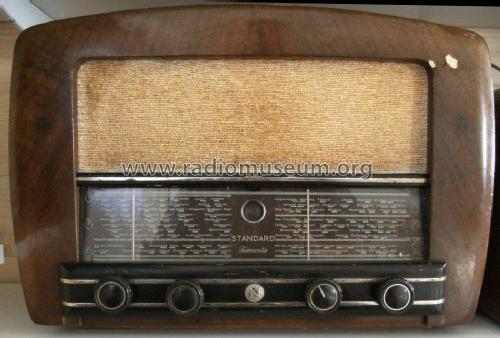

Ferrando U 317-2; Czeija, Nissl & Co., (ID = 1340524) Radio Ferrando U 317-2; Czeija, Nissl & Co., (ID = 2250105) Radio
Use red slider bar for more.
Ferrando U 317-2; Czeija, Nissl & Co., (ID = 1340522) Radio
Czeija, Nissl & Co.,: Ferrando U 317-2 [Radio] ID = 1340522 900x696
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ferrando U 317-2, Czeija, Nissl & Co., Standard, ITT, Alcatel; Wien

Country:  Austria
Manufacturer / Brand:  Czeija, Nissl & Co., Standard, ITT, Alcatel; Wien
alternative name

Hekaphon
Year: 1951/1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCH42 UAF42 UAF42 UL41 UM4 UY41
Semiconductors (the count is only for transistors) Heissleiter
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Ready for FM, has Broadcast, Long Wave, several Short Wave.
Details
Power type and voltage AC/DC-set / 110; 125; 150; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
Power out
from Radiomuseum.org Model: Ferrando U 317-2 - Czeija, Nissl & Co., Standard,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 525 x 366 x 255 mm / 20.7 x 14.4 x 10 inch
Notes

3x KW

Für UKW vorbereitet mit Einsatz 320-2

Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Price in first year of sale 2'190.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange-Nowisch
