Hekaphon 89111

Hekaphon 89111; Czeija, Nissl & Co., (ID = 460145) Radio Hekaphon 89111; Czeija, Nissl & Co., (ID = 460150) Radio
Hekaphon 89111; Czeija, Nissl & Co., (ID = 460146) Radio Hekaphon 89111; Czeija, Nissl & Co., (ID = 460147) Radio
Hekaphon 89111; Czeija, Nissl & Co., (ID = 460148) Radio Hekaphon 89111; Czeija, Nissl & Co., (ID = 460149) Radio

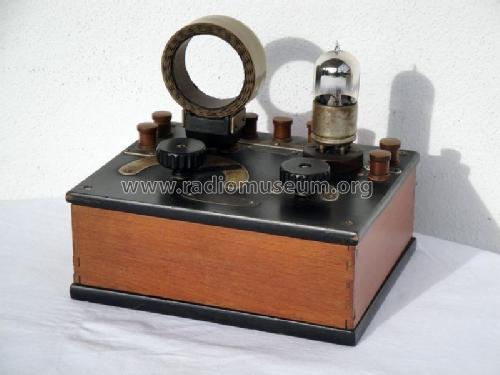

Hekaphon 89111; Czeija, Nissl & Co., (ID = 1586150) Radio Hekaphon 89111; Czeija, Nissl & Co., (ID = 1586151) Radio

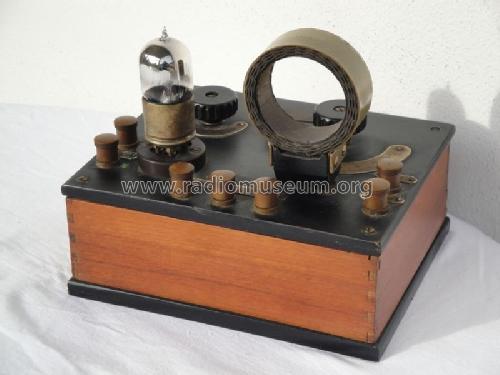

Hekaphon 89111; Czeija, Nissl & Co., (ID = 1586152) Radio Hekaphon 89111; Czeija, Nissl & Co., (ID = 1586154) Radio
Use red slider bar for more.
Hekaphon 89111; Czeija, Nissl & Co., (ID = 460145) Radio
Czeija, Nissl & Co.,: Hekaphon 89111 [Radio] ID = 460145 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hekaphon 89111, Czeija, Nissl & Co., Standard, ITT, Alcatel; Wien:
Hekaphon 89111

Country:  Austria
Manufacturer / Brand:  Czeija, Nissl & Co., Standard, ITT, Alcatel; Wien
alternative name

Hekaphon
Year: 1924–1926 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 1:
Main principle TRF with regeneration
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Hekaphon 89111 - Czeija, Nissl & Co., Standard,
Material Wooden case, TUBES VISIBLE.
Dimensions (WHD) 190 x 75 x 150 mm / 7.5 x 3 x 5.9 inch
Notes Primärkreis-Audion; Steckspule
Net weight (2.2 lb = 1 kg) 1.175 kg / 2 lb 9.4 oz (2.588 lb)
Price in first year of sale 48.00 öS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb


All listed radios etc. from Czeija, Nissl & Co., Standard, ITT, Alcatel; Wien
Here you find 120 models, 66 with images and 34 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
