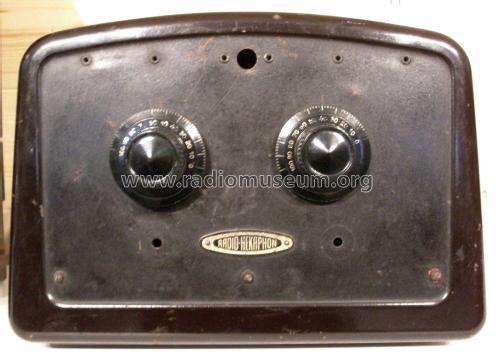

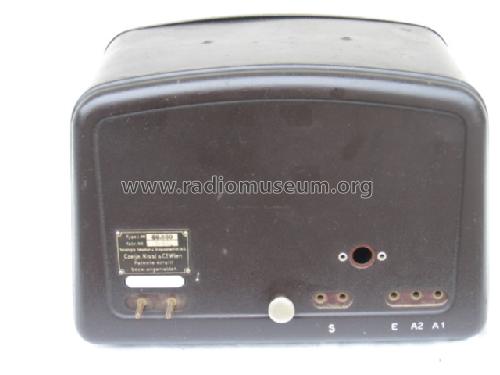

Hekaphon O2 89560

Hekaphon O2 89560; Czeija, Nissl & Co., (ID = 37438) Radio
Hekaphon O2 89560; Czeija, Nissl & Co., (ID = 134040) Radio Hekaphon O2 89560; Czeija, Nissl & Co., (ID = 134042) Radio
Hekaphon O2 89560; Czeija, Nissl & Co., (ID = 134041) Radio Hekaphon O2 89560; Czeija, Nissl & Co., (ID = 3902) Radio
Hekaphon O2 89560; Czeija, Nissl & Co., (ID = 10401) Radio
Use red slider bar for more.
Hekaphon O2 89560; Czeija, Nissl & Co., (ID = 134040) Radio
Czeija, Nissl & Co.,: Hekaphon O2 89560 [Radio] ID = 134040 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hekaphon O2 89560, Czeija, Nissl & Co., Standard, ITT, Alcatel; Wien:
Hekaphon O2

Country:  Austria
Manufacturer / Brand:  Czeija, Nissl & Co., Standard, ITT, Alcatel; Wien
alternative name

Hekaphon
Year: 1928–1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3:
Main principle TRF with regeneration; 1 AF stage(s); something special ? Please give information (notes)
Tuned circuits 1 AM circuit(s)
Details
Power type and voltage Line (AC, UC or DC not known)
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Hekaphon O2 89560 - Czeija, Nissl & Co., Standard,
Notes Lichtnetz-Ortsempfänger
Price in first year of sale 235.00 ATS
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb


All listed radios etc. from Czeija, Nissl & Co., Standard, ITT, Alcatel; Wien
Here you find 120 models, 66 with images and 34 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Czeija, Nissl & Co.,: Hekaphon O2 89560
Threads: 1 | Posts: 1
Hits: 1421     Replies: 0
czeija: Ortsempfänger O2
Gerhard Heigl
10.Oct.02
  1 Bereich MW; Betrieb 110-220 V~; Gehäuse Metall; BHT 270x190x170 mm; 3 Röhren: E415? REN904? 506?

Czeija, Nissl & Co.,: Hekaphon O2 89560
