• Country
• Italy

• Manufacturer / Brand
• DBR (D.B.R.); Vimodrone (MI)

• Year
• 1970 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 261128

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• SFT317 SFT307 SFT307 SFT352 SFT353 SFT367 SFT367 SFD106

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Regler Transistor Arno - DBR D.B.R.; Vimodrone MI

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes

• Radio a transistor tascabile con sole Onde Medie

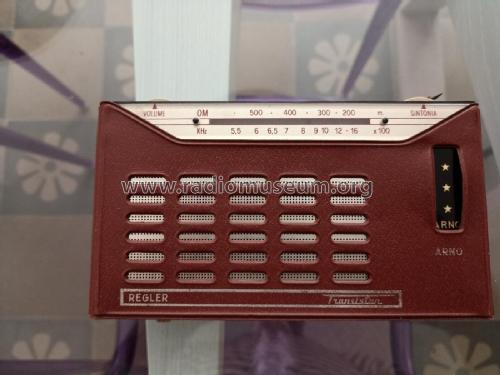

  Portable AM Transistor Radio Model Regler Arno.
  Carrying Case

• Mentioned in
• -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" marzo 1971.)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
