Deccalian Amplifier SC100

Deccalian Amplifier SC100; Decca, London (ID = 1831521) Ampl/Mixer Deccalian Amplifier SC100; Decca, London (ID = 1831525) Ampl/Mixer
Deccalian Amplifier SC100; Decca, London (ID = 1831527) Ampl/Mixer Deccalian Amplifier SC100; Decca, London (ID = 1831529) Ampl/Mixer
Use red slider bar for more.

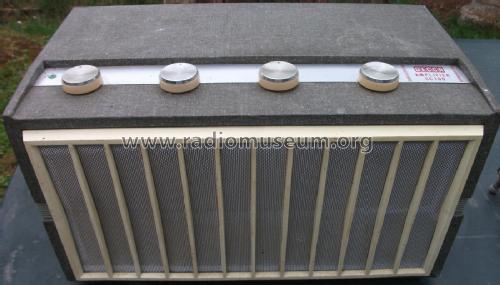

Deccalian Amplifier SC100; Decca, London (ID = 1831521) Ampl/Mixer
Decca, London: Deccalian Amplifier SC100 [Ampl/Mixer] ID = 1831521 1400x800
Select picture or schematic to display from thumbnails on the right and click for download.
For model Deccalian Amplifier SC100, Decca, London:
Unrestored as found

Country:  Great Britain (UK)
Manufacturer / Brand:  Decca, London
alternative name

Decca Gramophone || Decca Radio
Year: 1964 ? Category: Audio Amplifier or -mixer
Valves / Tubes 5: ECC83 ECC83 EL84 EL84 EZ80
Main principle Audio-Amplification
Wave bands - without
Details Loudspeaker + integr.Amplifier
Power type and voltage Alternating Current supply (AC) / 200-210; 220-230; 240-250 Volt
Loudspeaker 2 Loudspeakers
Power out 7 W (unknown quality)
from Radiomuseum.org Model: Deccalian Amplifier SC100 - Decca, London
Material Leather / canvas / plastic - over other material
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 15.5 x 8.5 x 8.5 inch / 394 x 216 x 216 mm
Notes

This is the matching Amplifier to the Decca Deccalian Mk4 to convert to stereo operation.

The Maximum power is only achieved when an external speaker is used.
Speaker size is 10 by 6 inches woofer with a 3 inch diameter tweeter. both are 15 Ohm

Net weight (2.2 lb = 1 kg) 6.5 kg / 14 lb 5.1 oz (14.317 lb)

Model page created by Mike Tonkin. See "Data change" for further contributors.
