Aries (Aires) Ch= 6D411

Aries Ch= 6D411; De Forest DeForest (ID = 2245384) Radio

Aries Ch= 6D411; De Forest DeForest (ID = 2245385) Radio
Aries Ch= 6D411; De Forest DeForest (ID = 1935344) Radio Aries Ch= 6D411; De Forest DeForest (ID = 1935347) Radio

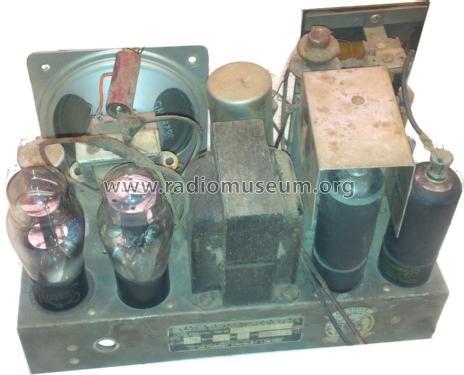

Aries Ch= 6D411; De Forest DeForest (ID = 1935351) Radio Aries Ch= 6D411; De Forest DeForest (ID = 1935350) Radio
Aries Ch= 6D411; De Forest DeForest (ID = 1935352) Radio Aries Ch= 6D411; De Forest DeForest (ID = 1822546) Radio
Use red slider bar for more.
Aries Ch= 6D411; De Forest DeForest (ID = 1935344) Radio
De Forest DeForest: Aries Ch= 6D411 [Radio] ID = 1935344 1400x971
Select picture or schematic to display from thumbnails on the right and click for download.
For model Aries (Aires) Ch= 6D411, De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto:

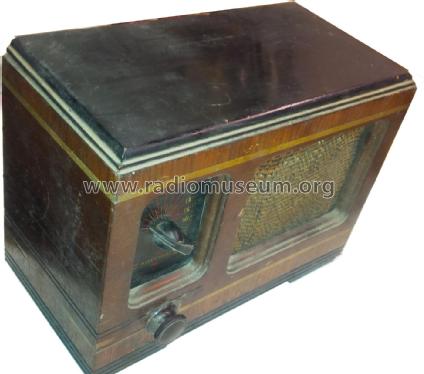

From my photos, my radio.

Country:  Canada
Manufacturer / Brand:  De Forest (DeForest) Crosley Radio, Consolidated Industries; Toronto
Year: 1937 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 6K7M 77M 41M 1-V
Main principle TRF without regeneration; 2 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 25 to 60 Hz, 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Aries Ch= 6D411 - De Forest DeForest Crosley
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 10.25 x 7.75 x 5 inch / 260 x 197 x 127 mm
Notes

The Deforest "Aries" is a 4-tube TRF radio for standard broadcast reception. Same schematic as the Rogers model 11/40. This model requires a 75-125 foot external wire antenna.

Stein mentions 5 tubes which might be erroneous. Stein further uses the model name "Aires", which is probably also erroneous, as an uploaded picture of the bottom of the model shows the name "Aries".

Literature/Schematics (1) - - Manufacturers Literature (Rogers service manual Vol 2 P. 27)
Literature/Schematics (2) Table Top Radios Vol. 4 Stein 2003 (page 74.)

Model page created by Noemi Erb. See "Data change" for further contributors.
