- Country
- France
- Manufacturer / Brand
- Desmet, SGER (S.G.E.R.); Lille, Faches-Thumesnil
- Year
- 1935/1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 62607
Dépliant Gamme 1936
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 122.5 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Details
- Visual Tuning Indicator pre Eye
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
- Material
- Wooden case
- from Radiomuseum.org

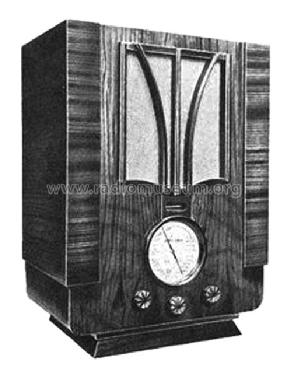

- Model: 663 - Desmet, SGER S.G.E.R.; Lille,
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Notes
-
3 gammes d'ondes. Étage HF. Détection linéaire. Volume contrôle automatique et Antifading. Indicateur d'accord à ombre.
- Price in first year of sale
- 1,750.00 FRF
- External source of data
- Serge Laffont/Martin Renoth
- Mentioned in
- -- Original prospect or advert (Dépliant Gamme 1936)
- Literature/Schematics (1)

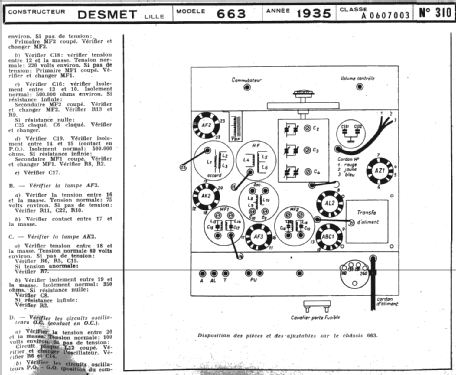

- Schémathèque Toute la Radio (STR) (No. 310)
- Other Models
-
Here you find 73 models, 50 with images and 23 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Desmet, SGER (S.G.E.R.); Lille, Faches-Thumesnil
