Batavia D42

Batavia D42; Deso, Dewald & Sohn, (ID = 17106) Radio

Batavia D42; Deso, Dewald & Sohn, (ID = 17107) Radio
Batavia D42; Deso, Dewald & Sohn, (ID = 818009) Radio Batavia D42; Deso, Dewald & Sohn, (ID = 818008) Radio
Batavia D42; Deso, Dewald & Sohn, (ID = 298785) Radio Batavia D42; Deso, Dewald & Sohn, (ID = 298783) Radio
Batavia D42; Deso, Dewald & Sohn, (ID = 298784) Radio Batavia D42; Deso, Dewald & Sohn, (ID = 1514) Radio
Batavia D42; Deso, Dewald & Sohn, (ID = 804246) Radio Batavia D42; Deso, Dewald & Sohn, (ID = 1330528) Radio
Use red slider bar for more.
Batavia D42; Deso, Dewald & Sohn, (ID = 818009) Radio

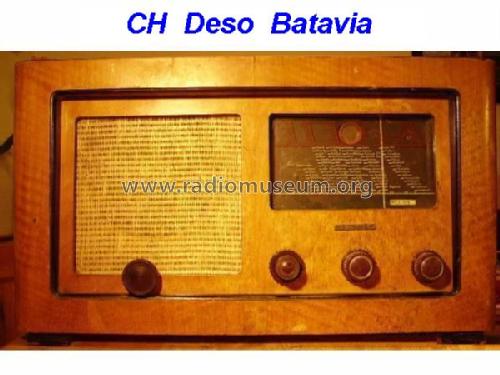

Deso, Dewald & Sohn,: Batavia D42 [Radio] ID = 818009 933x514
Select picture or schematic to display from thumbnails on the right and click for download.
For model Batavia D42, Deso, Dewald & Sohn, Dewald AG; Zürich

Country:  Switzerland
Manufacturer / Brand:  Deso, Dewald & Sohn, Dewald AG; Zürich
Year: 1941/1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH4 EF9 EBC3 EL3 EM4 AZ1
Main principle Superheterodyne (common); ZF/IF 470 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220; 250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: Batavia D42 - Deso, Dewald & Sohn, Dewald AG
Material Wooden case
Dimensions (WHD) 525 x 310 x 210 mm / 20.7 x 12.2 x 8.3 inch
Notes Linearskala
Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)
Price in first year of sale 395.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

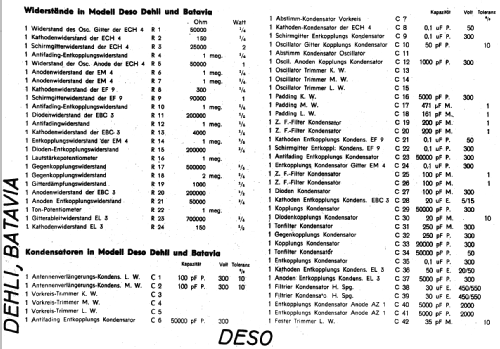

Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Deso, Dewald & Sohn, Dewald AG; Zürich
Here you find 183 models, 109 with images and 152 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
