Jubiläum 505
Deso, Dewald & Sohn, Dewald AG; Zürich
- Country
- Switzerland
- Manufacturer / Brand
- Deso, Dewald & Sohn, Dewald AG; Zürich
- Year
- 1949/1950
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 11935

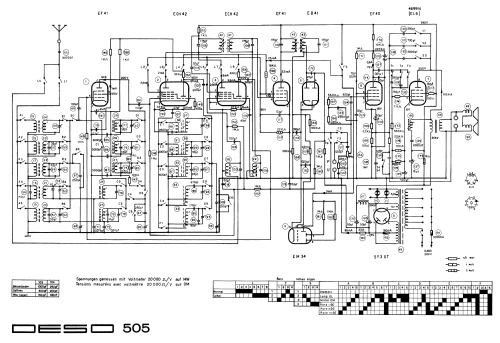

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 470 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110-250 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Jubiläum 505 - Deso, Dewald & Sohn, Dewald AG
- Dimensions (WHD)
- 680 x 396 x 250 mm / 26.8 x 15.6 x 9.8 inch
- Net weight (2.2 lb = 1 kg)
- 19.5 kg / 42 lb 15.2 oz (42.952 lb)
- Price in first year of sale
- 960.00 SFr
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Thali-Schemasammlung und Tungsram-Röhrenbestückung.
