Jubiläum 515

Jubiläum 515; Deso, Dewald & Sohn, (ID = 17282) Radio

Jubiläum 515; Deso, Dewald & Sohn, (ID = 17283) Radio
Jubiläum 515; Deso, Dewald & Sohn, (ID = 856388) Radio Jubiläum 515; Deso, Dewald & Sohn, (ID = 855709) Radio
Use red slider bar for more.
Jubiläum 515; Deso, Dewald & Sohn, (ID = 856388) Radio

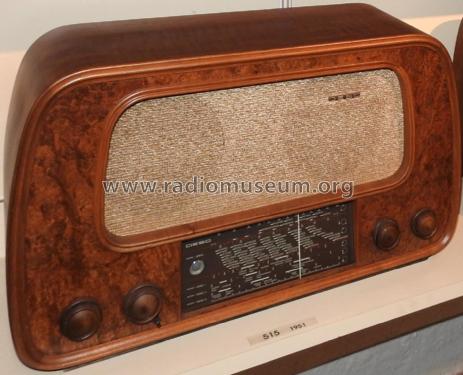

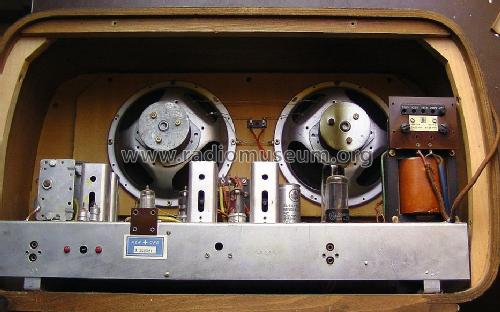

Deso, Dewald & Sohn,: Jubiläum 515 [Radio] ID = 856388 933x541
Select picture or schematic to display from thumbnails on the right and click for download.
For model Jubiläum 515, Deso, Dewald & Sohn, Dewald AG; Zürich

Country:  Switzerland
Manufacturer / Brand:  Deso, Dewald & Sohn, Dewald AG; Zürich
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: EF41 ECH42 ECH42 EF41 EM34 EB41 EF40 EL6spez 5Y3GT
Main principle Superhet with RF-stage; ZF/IF 470 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220; 250 Volt
Loudspeaker 2 Loudspeakers / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Jubiläum 515 - Deso, Dewald & Sohn, Dewald AG
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 680 x 400 x 250 mm / 26.8 x 15.7 x 9.8 inch
Notes Die beiden permanentdynamischen Lautsprecher sind in Reihe geschaltet. Drei Kurzwellenbereiche.
Price in first year of sale 820.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Die Tungsram-Tabellen führen das Modell auf.
