Kongo E42

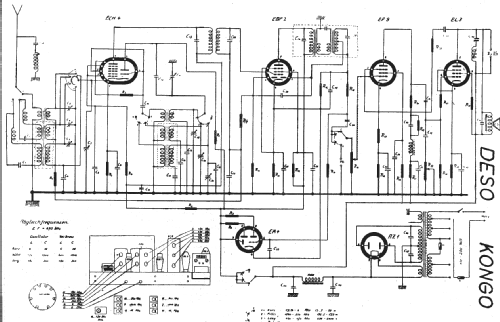

Kongo E42; Deso, Dewald & Sohn, (ID = 17111) Radio

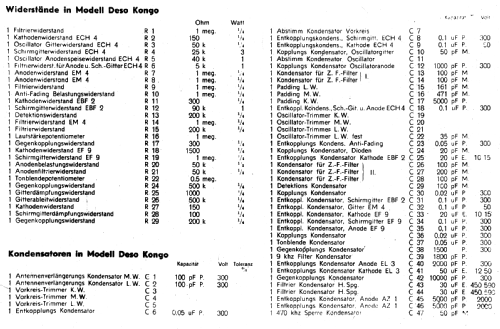

Kongo E42; Deso, Dewald & Sohn, (ID = 17112) Radio

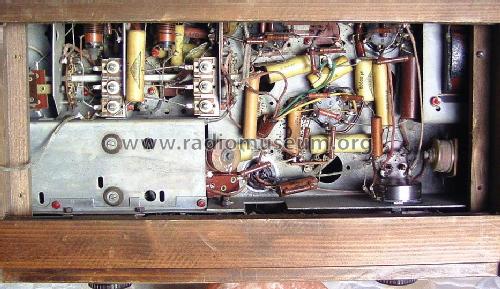

Kongo E42; Deso, Dewald & Sohn, (ID = 1515) Radio Kongo E42; Deso, Dewald & Sohn, (ID = 801808) Radio
Kongo E42; Deso, Dewald & Sohn, (ID = 801811) Radio Kongo E42; Deso, Dewald & Sohn, (ID = 801809) Radio

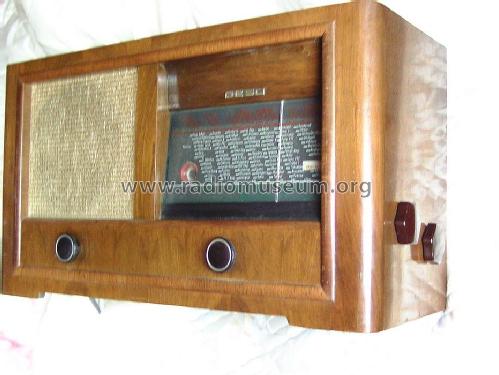

Kongo E42; Deso, Dewald & Sohn, (ID = 801810) Radio Kongo E42; Deso, Dewald & Sohn, (ID = 801812) Radio

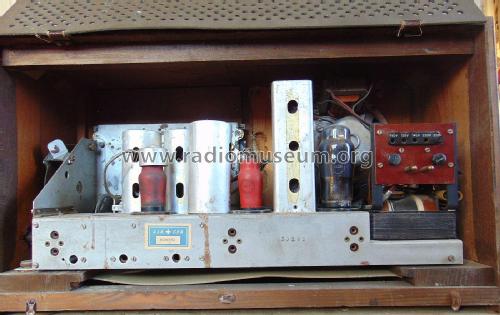

Kongo E42; Deso, Dewald & Sohn, (ID = 2051727) Radio
Use red slider bar for more.

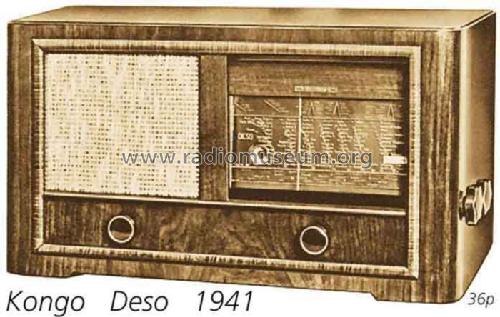

Kongo E42; Deso, Dewald & Sohn, (ID = 1515) Radio
Deso, Dewald & Sohn,: Kongo E42 [Radio] ID = 1515 700x445
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kongo E42, Deso, Dewald & Sohn, Dewald AG; Zürich

Country:  Switzerland
Manufacturer / Brand:  Deso, Dewald & Sohn, Dewald AG; Zürich
Year: 1941–1943 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH4 EBF2 EF9 EL3 EM4 AZ1
Main principle Superheterodyne (common); ZF/IF 470 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220; 250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Kongo E42 - Deso, Dewald & Sohn, Dewald AG
Material Wooden case
Dimensions (WHD) 590 x 340 x 230 mm / 23.2 x 13.4 x 9.1 inch
Net weight (2.2 lb = 1 kg) 15.7 kg / 34 lb 9.3 oz (34.581 lb)
Price in first year of sale 475.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
