• Country
• Spain

• Manufacturer / Brand
• de Wald; Barcelona

• Year
• 1950 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 193967

• Number of Tubes
• 5

• Valves / Tubes
• ECH42 EF41 EAF42 EL41 AZ41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

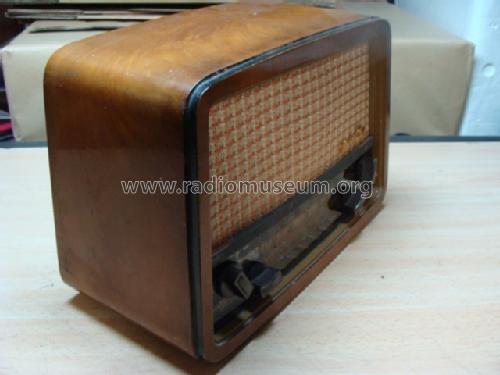

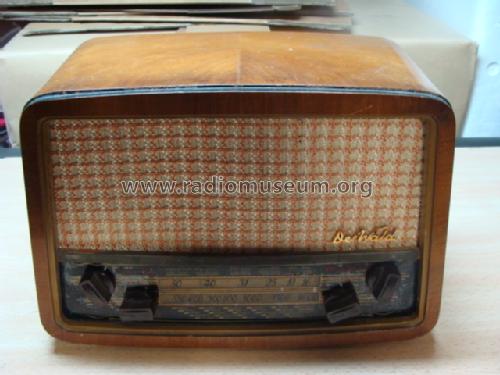

• Model: A - de Wald; Barcelona

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 320 x 220 x 150 mm / 12.6 x 8.7 x 5.9 inch

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
