• Country
• Spain

• Manufacturer / Brand
• de Wald; Barcelona

• Year
• 1950–1960 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 306517

• Number of Tubes
• 4

• Valves / Tubes
• UCH42 UAF42 UAF42 UL41

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 110-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

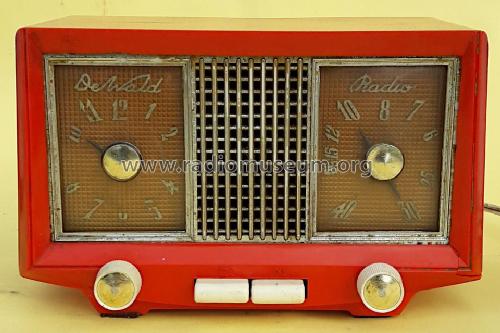

• Model: Pitusa - de Wald; Barcelona

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 195 x 120 x 100 mm / 7.7 x 4.7 x 3.9 inch

• Notes

• De Wald (Laboratorios Radio-Eléctricos);  receptor Pitusa

  Reloj despertador (activa la radio)

• Author
• Model page created by Francisco Gallego. See "Data change" for further contributors.
