Motor Dictograph

Dictograph Products Co. International (General Acoustic; Acousticon; Turner) ; New York

Daten
Forum
Bilder
Sammlungen

  • Jahr
  • 1917–1925
  • Kategorie
  • Lautsprecher, Kopfhörer oder Ohrhörer
  • Radiomuseum.org ID
  • 229256

 Technische Daten

  • Wellenbereiche
  • - ohne
  • Betriebsart / Volt
  • Akku und/oder Batterie / 6 Volt
  • Lautsprecher
  • Trichter / Ø 3.5 inch = 8.9 cm
  • Material
  • Metallausführung
  • von Radiomuseum.org
  • Modell: Motor Dictograph - Dictograph Products Co.
  • Form
  • Diverse Formen, unter Bemerkung beschrieben.
  • Abmessungen (BHT)
  • 0 x 10 x 0 inch / 0 x 254 x 0 mm
  • Bemerkung

  • The "Motor Dictograph" is a system for closed-cabin driver/passenger communication and was first displayed in the 1917 Salon and Shows.

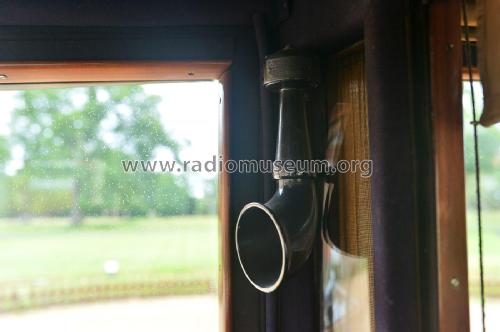

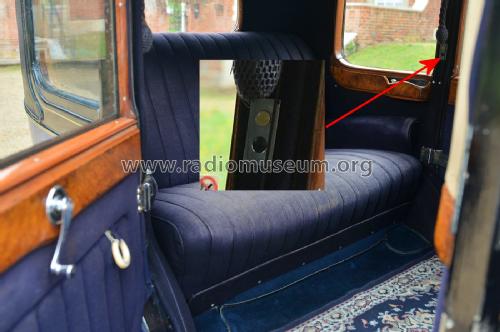

    It comprises a carbon microphone built into the passenger cabin, and a horn speaker which is mounted near the driver seat.

    The horn has a height of 10"; the typeplate on its base reads 6 Volt - 2 Amp.



    It was still in use in 1925, when a Minerva AF was equipped with the system.

  • Literaturnachweis
  • Automotive Industries, Volume 53, 1919, P.396
  • Literatur/Schema (1)
  • Radio Horn Speaker Encyclopedia, Paul, 1986
