Menuet 6204 EM84

Menuet 6204; Unitra DIORA - (ID = 166912) Radio Menuet 6204; Unitra DIORA - (ID = 166913) Radio
Menuet 6204; Unitra DIORA - (ID = 166914) Radio Menuet 6204; Unitra DIORA - (ID = 166915) Radio
Menuet 6204; Unitra DIORA - (ID = 166916) Radio
Use red slider bar for more.
Menuet 6204; Unitra DIORA - (ID = 166912) Radio
Unitra DIORA -: Menuet 6204 [Radio] ID = 166912 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Menuet 6204 EM84, Unitra DIORA - Radiowerk Dzierzoniow,:

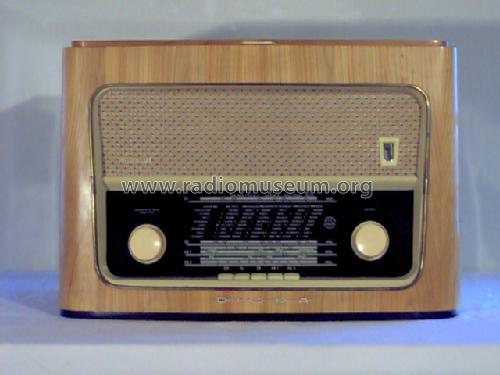

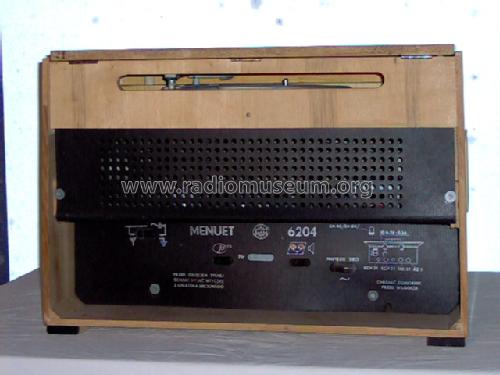

Diora Menuet 6204

Country:  Poland
Manufacturer / Brand:  Unitra DIORA - Radiowerk Dzierzoniow,
Year: 1964 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH21 ECH21 EBL21 AZ1 EM84
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 18 cm = 7.1 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Menuet 6204 [EM84] - Unitra DIORA - Radiowerk
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 600 x 390 x 315 mm / 23.6 x 15.4 x 12.4 inch
Net weight (2.2 lb = 1 kg) 16 kg / 35 lb 3.9 oz (35.242 lb)
Source of data - - Data from my own collection

Model page created by Martin Geist. See "Data change" for further contributors.



All listed radios etc. from Unitra DIORA - Radiowerk Dzierzoniow,
Here you find 270 models, 224 with images and 133 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
