M8002; Domus Marke, (ID = 539206) Radio
Domus Marke,: M8002 [Radio] ID = 539206 918x610
Select picture or schematic to display from thumbnails on the right and click for download.
For model M8002, Domus (Marke), Großeinkaufs-Ges. Deutscher Konsumgenossenschaften; Hamburg

Country:  Germany
Manufacturer / Brand:  Domus (Marke), Großeinkaufs-Ges. Deutscher Konsumgenossenschaften; Hamburg
Year: 1963 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EF89 EABC80 EL84
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details

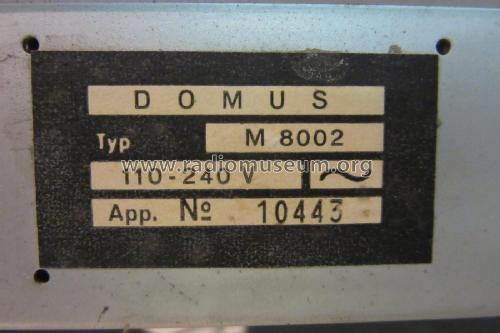

Power type and voltage Alternating Current supply (AC) / 110; 130; 155; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: M8002 - Domus Marke, Großeinkaufs-Ges.
Material Moulded (Bakelite or Plastics)

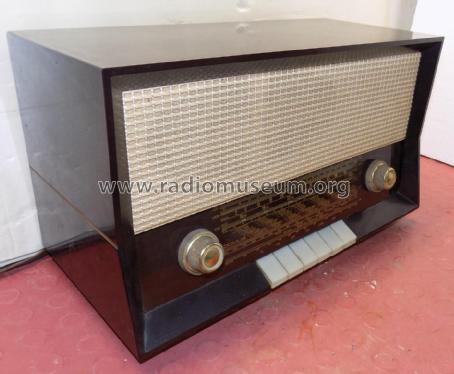

Shape Tablemodel with Push Buttons.
Dimensions (WHD) 410 x 240 x 205 mm / 16.1 x 9.4 x 8.1 inch
Notes

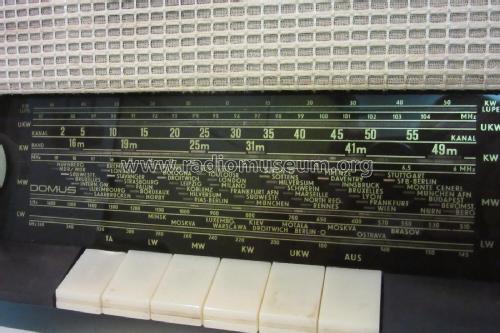

mit KW-Lupe, UKW bis 104 MHz.

Auch unter der Bezeichnung Wega Wegafox gefertigt.

Net weight (2.2 lb = 1 kg) 5.6 kg / 12 lb 5.4 oz (12.335 lb)
Source of data -- Collector info (Sammler)

Model page created by Michael Poll. See "Data change" for further contributors.
