• Country
• Germany

• Manufacturer / Brand
• Dreipunkt-Gerätebau, Willy Hütter, Nürnberg

• Year
• 1954 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 14206

• • alternative name: Radio-Hütter
  • Brand: Hütter, W. (Radio-Versand)

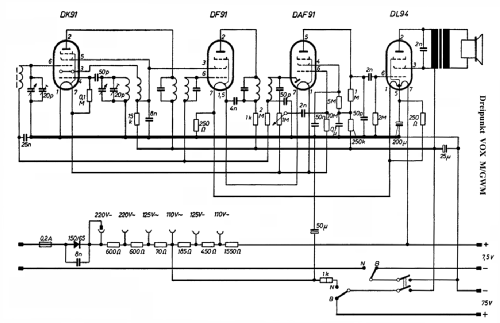

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• DK91 DF91 DAF91 DL94

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Vox M/GWB - Dreipunkt-Gerätebau, Willy

• Shape
• Portable set > 8 inch (also usable without mains)

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Lange Schaltungen der Funkindustrie, Buch 3

• Other Models

• Here you find 47 models, 24 with images and 25 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Dreipunkt-Gerätebau, Willy Hütter, Nürnberg
