• Country
• Germany

• Manufacturer / Brand
• Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

• Year
• 1986

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 186861

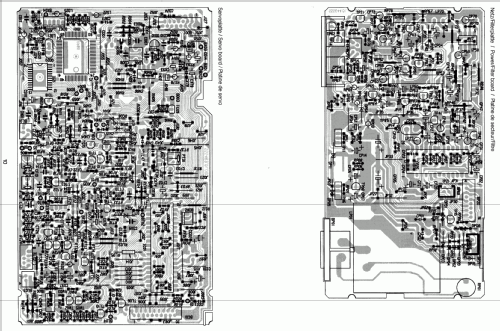

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• CD-Player, -Writer, MD, MOD (audio)

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: CD-20 - Dual, Gebr. Steidinger; St.

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 440 x 90 x 290 mm / 17.3 x 3.5 x 11.4 inch

• Notes
• 3-Strahl-Laser, Frequenzbereich 20-20.000 Hz +/- 0,5 dB.
  Hergestellt in Deutschland.

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Felix Kreitlow. See "Data change" for further contributors.
