CV20

CV20; Dual, Gebr. (ID = 287709) Ampl/Mixer

CV20; Dual, Gebr. (ID = 287711) Ampl/Mixer

CV20; Dual, Gebr. (ID = 287714) Ampl/Mixer

CV20; Dual, Gebr. (ID = 287716) Ampl/Mixer

CV20; Dual, Gebr. (ID = 287708) Ampl/Mixer
CV20; Dual, Gebr. (ID = 343801) Ampl/Mixer CV20; Dual, Gebr. (ID = 343803) Ampl/Mixer
CV20; Dual, Gebr. (ID = 343802) Ampl/Mixer CV20; Dual, Gebr. (ID = 145289) Ampl/Mixer
CV20; Dual, Gebr. (ID = 343804) Ampl/Mixer CV20; Dual, Gebr. (ID = 1023147) Ampl/Mixer
CV20; Dual, Gebr. (ID = 1774244) Ampl/Mixer CV20; Dual, Gebr. (ID = 2030004) Ampl/Mixer
CV20; Dual, Gebr. (ID = 2030005) Ampl/Mixer CV20; Dual, Gebr. (ID = 2030006) Ampl/Mixer
Use red slider bar for more.
CV20; Dual, Gebr. (ID = 343801) Ampl/Mixer
Dual, Gebr.: CV20 [Ampl/Mixer] ID = 343801 795x274

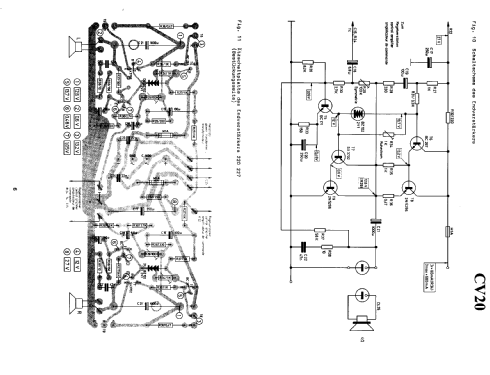

Select picture or schematic to display from thumbnails on the right and click for download.

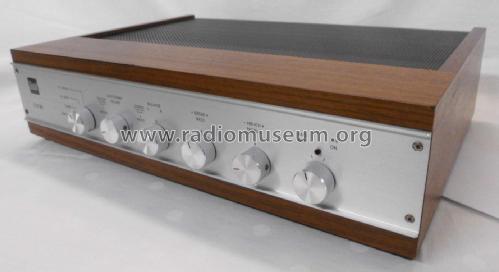

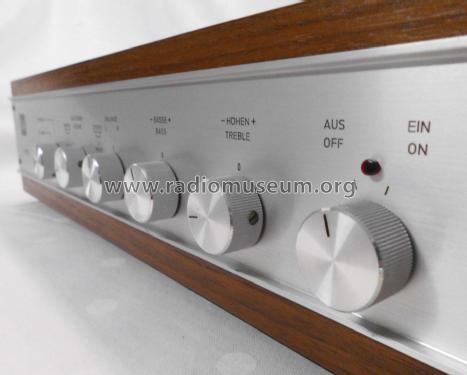

For model CV20, Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

Country:  Germany
Manufacturer / Brand:  Dual, Gebr. Steidinger; St. Georgen/Schwarzwald
Year: 1970–1972 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 18:
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110-130; 150; 220-240 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: CV20 - Dual, Gebr. Steidinger; St.
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 420 x 108 x 285 mm / 16.5 x 4.3 x 11.2 inch
Notes Stereo-NF-Verstärker mit 2 Endstufen je 9 W (Sinus).
Gehaüse: Nußbaum, natur; siehe auch CV20W in Schleiflack, weiß.
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Price in first year of sale 348.00 DM
External source of data Erb
Source of data Handbuch VDRG 1970/1971 / Radiokatalog Band 2, Ernst Erb
