• Year
  • 1974–1976
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 29348

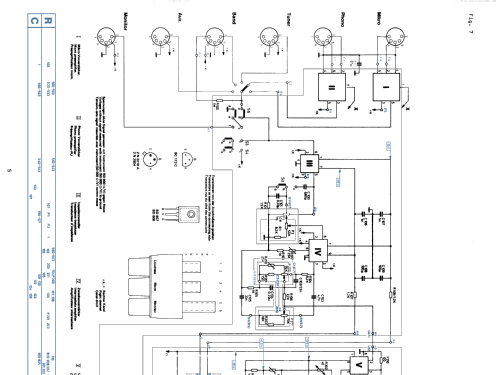

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 30
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 117; 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: CV 61 - Dual, Gebr. Steidinger; St.
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 420 x 108 x 305 mm / 16.5 x 4.3 x 12 inch
  • Notes
  • 2 ICs. Stereo-NF-Verstärker mit 2 Endstufen je 20 W (Sinus); LS-Matrix für Quadroeffekt-Wiedergabe.
    Gehäuse: Nußbaum, natur; siehe auch CV61W in Schleiflack, weiß.
  • Net weight (2.2 lb = 1 kg)
  • 6.2 kg / 13 lb 10.5 oz (13.656 lb)
  • External source of data
  • Erb
