• Country
• Germany

• Manufacturer / Brand
• Dual, Gebr. Steidinger; St. Georgen/Schwarzwald

• Year
• 1983

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 200987

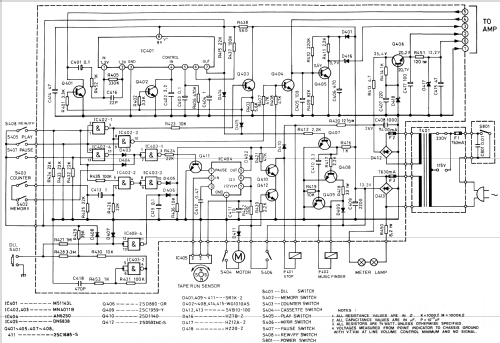

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Cassette Deck C816 - Dual, Gebr. Steidinger; St.

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 440 x 112 x 265 mm / 17.3 x 4.4 x 10.4 inch

• Notes
• HIFI Kassettendeck mit DLL, Soft-touch Laufwerkesteuerung.
  Servogeregelter Gleichstrommotor, elektronische Bandlaufüberwachung, Gleichlaufschwankung 0,045 % WRMS. M+X Kombikopf, automatische/ manuelle 4fach Bandsortenwahl, Dolby B+C, Ausführung satin-metallic,

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Felix Kreitlow. See "Data change" for further contributors.
