• Country
• France

• Manufacturer / Brand
• Ducretet (-Thomson; avant: Fernand Ducretet et Ernest Roger etc.); Paris

• Year
• 1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 105885

• • alternative name: SED

• Number of Tubes
• 6

• Valves / Tubes
• EK90 EF93 EBC91 EL84 EM85 EZ91

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 115; 127; 145; 220; 245 Volt

• Material
• Wooden case

• from Radiomuseum.org

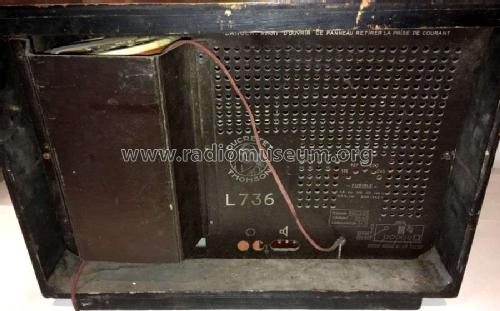

• Model: L736 - Ducretet -Thomson; avant:

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 480 x 330 x 220 mm / 18.9 x 13 x 8.7 inch

• Source of data
• Le grand livre de la TSF

• Author
• Model page created by John Koster. See "Data change" for further contributors.

• Other Models

• Here you find 655 models, 518 with images and 286 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
