• Country
• France

• Manufacturer / Brand
• Ducretet (-Thomson; avant: Fernand Ducretet et Ernest Roger etc.); Paris

• Year
• 1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 100422

• • alternative name: SED

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH81 EF93 EBC91 EL84 EM85 EZ91

• Main principle
• Superheterodyne (common); ZF/IF 480 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Line (AC, UC or DC not known)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch

• Material
• Wooden case

• from Radiomuseum.org

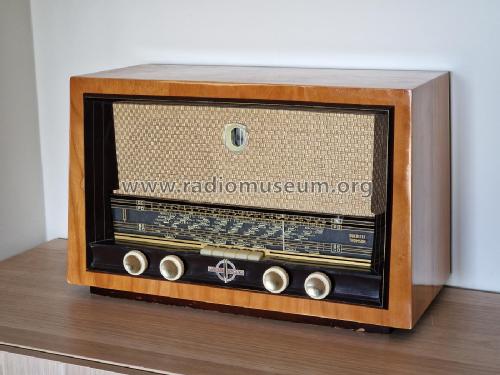

• Model: L835 - Ducretet -Thomson; avant:

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 480 x 300 x 230 mm / 18.9 x 11.8 x 9.1 inch

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Source of data
• -- Collector info (Sammler)

• Mentioned in
• Le grand livre de la TSF

• Author
• Model page created by John Koster. See "Data change" for further contributors.
