L934

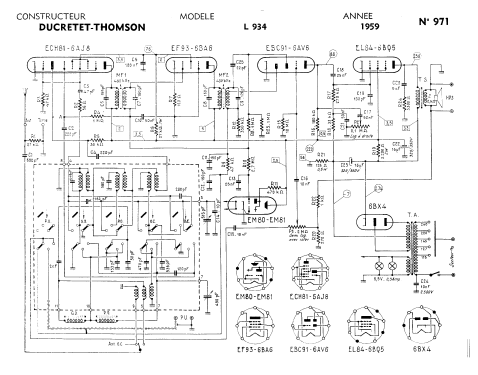

L934; Ducretet -Thomson; (ID = 89117) Radio

L934; Ducretet -Thomson; (ID = 89118) Radio
L934; Ducretet -Thomson; (ID = 89114) Radio L934; Ducretet -Thomson; (ID = 89115) Radio
L934; Ducretet -Thomson; (ID = 89116) Radio L934; Ducretet -Thomson; (ID = 468140) Radio
L934; Ducretet -Thomson; (ID = 615273) Radio L934; Ducretet -Thomson; (ID = 615274) Radio
L934; Ducretet -Thomson; (ID = 615276) Radio L934; Ducretet -Thomson; (ID = 663217) Radio
L934; Ducretet -Thomson; (ID = 1404528) Radio L934; Ducretet -Thomson; (ID = 1404529) Radio
Use red slider bar for more.
L934; Ducretet -Thomson; (ID = 89114) Radio
Ducretet -Thomson;: L934 [Radio] ID = 89114 933x606
Select picture or schematic to display from thumbnails on the right and click for download.
For model L934, Ducretet (-Thomson; avant: Fernand Ducretet et Ernest Roger etc.); Paris

Country:  France
Manufacturer / Brand:  Ducretet (-Thomson; avant: Fernand Ducretet et Ernest Roger etc.); Paris
alternative name

SED
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH81 or 6AJ8 EF93 or 6BA6 EBC91 or 6AV6 EL84 or 6BQ5 EM80 or EM81
Main principle Superheterodyne (common); ZF/IF 480 kHz
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 115-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: L934 - Ducretet -Thomson; avant:
Material Moulded (Bakelite or Plastics)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 480 x 300 x 240 mm / 18.9 x 11.8 x 9.4 inch
Notes Loudspeaker 12 × 19 cm. Colour: purple with an ivory front. Couleur. certains modèles ont la partie haute de la face avant vert clair.
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
External source of data Serge Laffont/Martin Renoth
Source of data Le grand livre de la TSF

Model page created by Ernst Erb. See "Data change" for further contributors.



All listed radios etc. from Ducretet (-Thomson; avant: Fernand Ducretet et Ernest Roger etc.); Paris
Here you find 617 models, 472 with images and 255 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
