TC72

TC72; Ducretet -Thomson; (ID = 216087) Radio

TC72; Ducretet -Thomson; (ID = 216088) Radio

TC72; Ducretet -Thomson; (ID = 1989447) Radio
TC72; Ducretet -Thomson; (ID = 1989449) Radio
Use red slider bar for more.

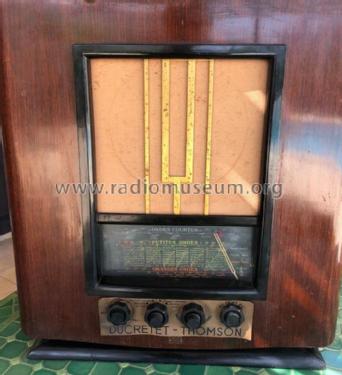

TC72; Ducretet -Thomson; (ID = 1989449) Radio
Ducretet -Thomson;: TC72 [Radio] ID = 1989449 600x720
Select picture or schematic to display from thumbnails on the right and click for download.
For model TC72, Ducretet (-Thomson; avant: Fernand Ducretet et Ernest Roger etc.); Paris:
Dépliant modèle

Country:  France
Manufacturer / Brand:  Ducretet (-Thomson; avant: Fernand Ducretet et Ernest Roger etc.); Paris
alternative name

SED
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6D6 6A7 6D6 75 43 43 25Z5 Urdox Neon_Indicator
Main principle Superhet with RF-stage; ZF/IF 450 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details Visual Tuning Indicator pre Eye
Power type and voltage AC/DC-set / 115; 135; 210; 230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
Power out
from Radiomuseum.org Model: TC72 - Ducretet -Thomson; avant:
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 400 x 500 x 330 mm / 15.7 x 19.7 x 13 inch
Notes

3 gammes d'ondes : OC de 16 à 50 m, PO de 200 à 550 m, et GO de 1000 à 1875 m. Étage HF, montage oscillateur OC auto-stabilisé (anti-shifting). Anti-fading. Antenne-secteur. Prise pick-up. Indicateur visuel à tube néon, réglable par un bouton à l'arrière.

Ébénisterie acajou verni, encadrement bakélite noire.

Alimentation tous courants, modèle pour secteur alternatif voir C736.


Like C736 but AC/DC.

External source of data Serge Laffont/Martin Renoth
Mentioned in Schémathèque Toute la Radio (STR) (No 100)
Literature/Schematics (1) -- Original prospect or advert
