B612T Ch= T6B
Dux Radio AB; Stockholm
- Country
- Sweden
- Manufacturer / Brand
- Dux Radio AB; Stockholm
- Year
- 1961
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 222431

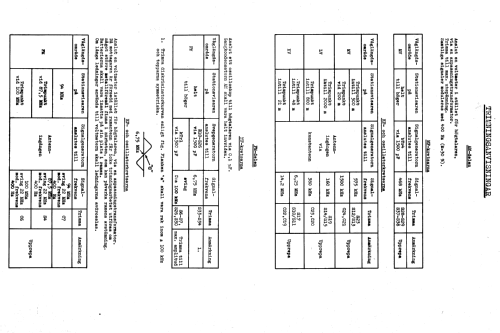

Aus den Hersteller-Unterlagen
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 9
- Semiconductors
- OC171 OC171 OC169 or. OC170 OC169 or. OC170 OC169 or. OC170 OC71 OC71 OC74 OC74 OA79 OA79 OA79 OA79
- Main principle
- Superhet with RF-stage; ZF/IF 455/6750 kHz
- Tuned circuits
- 6 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Dry Batteries / 2 x 4.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.6 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org
- Model: B612T Ch= T6B - Dux Radio AB; Stockholm
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 302 x 196 x 90 mm / 11.9 x 7.7 x 3.5 inch
- Notes
-
Shares the same chassis T6B with Philips L4S08T and Concerton B1721T.
Das Gehäuse ist aus Holz und Kunststoff gefertigt. Der Tragegriff ist aus Holz gefertigt.
- Net weight (2.2 lb = 1 kg)
- 2.450 kg / 5 lb 6.3 oz (5.396 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Jan-Ake Ahl. See "Data change" for further contributors.
