SA 1001U/79

SA 1001U/79; Dux Radio AB; (ID = 1664610) Radio SA 1001U/79; Dux Radio AB; (ID = 1664611) Radio

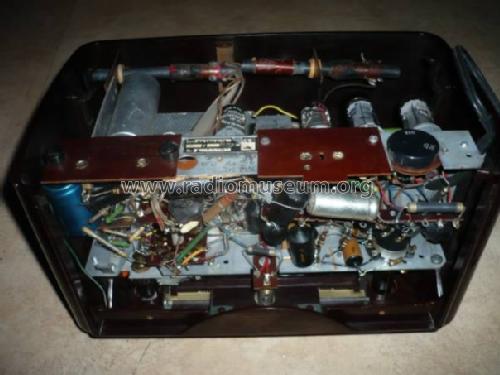

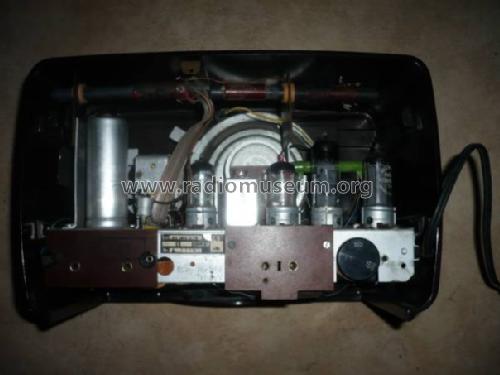

SA 1001U/79; Dux Radio AB; (ID = 1664612) Radio SA 1001U/79; Dux Radio AB; (ID = 1664613) Radio
Use red slider bar for more.
SA 1001U/79; Dux Radio AB; (ID = 1664610) Radio
Dux Radio AB;: SA 1001U/79 [Radio] ID = 1664610 604x453
Select picture or schematic to display from thumbnails on the right and click for download.
For model SA 1001U/79, Dux Radio AB; Stockholm

Country:  Sweden
Manufacturer / Brand:  Dux Radio AB; Stockholm
Year: 1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UF41 UBC41 UL41 UY41
schematic requested
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: SA 1001U/79 - Dux Radio AB; Stockholm
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 290 x 190 x 150 mm / 11.4 x 7.5 x 5.9 inch

Model page created by Timo Rantasaari. See "Data change" for further contributors.



All listed radios etc. from Dux Radio AB; Stockholm
Here you find 166 models, 148 with images and 76 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
