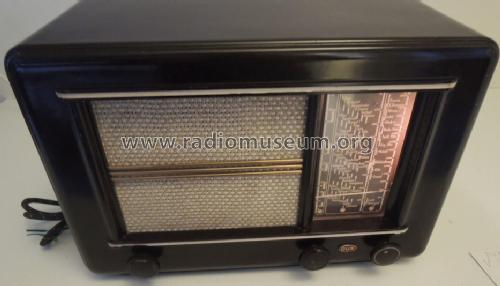

For model V411, Dux Radio AB; Stockholm:
From an auction catalogue.

Country:  Sweden
Manufacturer / Brand:  Dux Radio AB; Stockholm
Year: 1940/1941 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH3 EF9 EBC3 CL4 CY1
schematic requested
Main principle Superheterodyne (common); ZF/IF 454 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: V411 - Dux Radio AB; Stockholm
Material Bakelite case
Shape Tablemodel without bush buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 350 x 236 x 170 mm / 13.8 x 9.3 x 6.7 inch
Notes
3 Band reception:
  • LW: 720 - 2000 m.
  • BC: 186 - 585 m.
  • SW: 13,5 - 45 m.
Tuning scale light bulbs type: 8092D (10V, 200mA).
Loudspeaker Philips type 9648-06 or 9676. No connectors for external loudspeaker or pick-up.

This model is comparable with Philips 493A-06.

Net weight (2.2 lb = 1 kg) 5.9 kg / 12 lb 15.9 oz (12.996 lb)

Model page created by Peter Olausson. See "Data change" for further contributors.
