• Country
• Germany

• Manufacturer / Brand
• Dynacord (W. Pinternagel); Straubing

• Year
• 1961 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 268697

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECC83 ECF80 EL84 EL84 EZ81

• Main principle
• Audio-Amplification; Anode bend detection

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 15 W (unknown quality)

• Material
• Metal case, TUBES VISIBLE

• from Radiomuseum.org

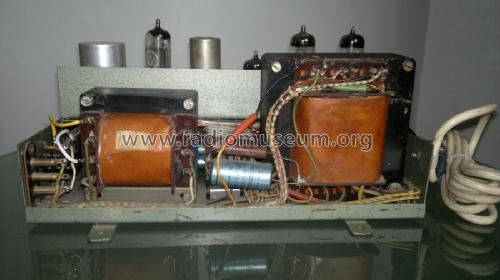

• Model: NF-Verstärker MB15 /M - Dynacord W. Pinternagel;

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 265 x 130 x 140 mm / 10.4 x 5.1 x 5.5 inch

• Notes

• Keine Angabe zu LS Impedanz; mit Anschluss für externen Lautstärkeregler; mit Anschluss für Doppel-Standbyschalter. Anschluss über 10-polige Kontaktleiste.

  Siehe auch Dynacord Modell AV15.

• Author
• Model page created by Tom Martens. See "Data change" for further contributors.
