• Year
  • 1962 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 167550

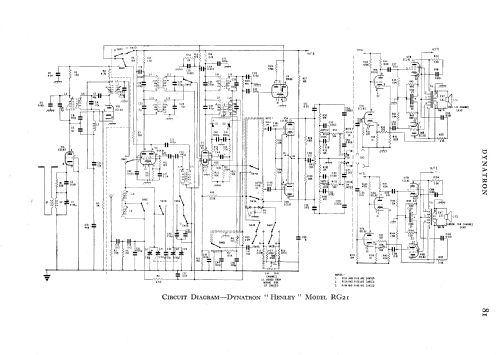

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 9
  • Main principle
  • Superheterodyne (common); 4 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 200-250 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • from Radiomuseum.org
  • Model: Henley RG21 - Dynatron Radio Ltd.,
  • Notes
  • Radiogram, MW LW & FM mono(86-100 Mhz). Record player stereo.
  • Source of data
  • -- Schematic
  • Author
  • Model page created by Keith Staines. See "Data change" for further contributors.
