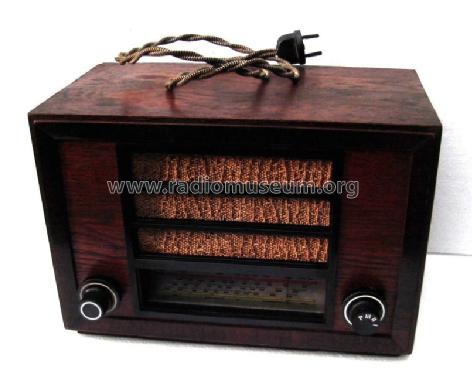

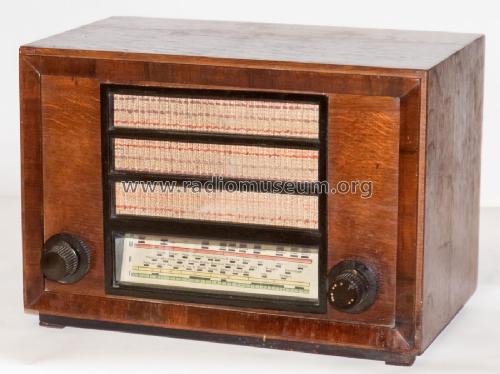

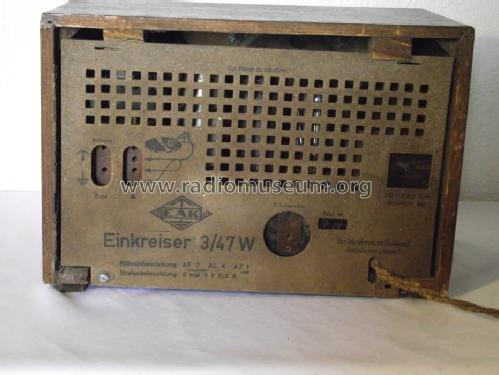

For model 3/47W, EAK, Elektro-Apparatefabrik Köppelsdorf, ex AEG (Sonneberg)

Country:  Germany
Manufacturer / Brand:  EAK, Elektro-Apparatefabrik Köppelsdorf, ex AEG (Sonneberg)
Year: 1947/1948 Category: Broadcast Receiver - or past WW2 Tuner

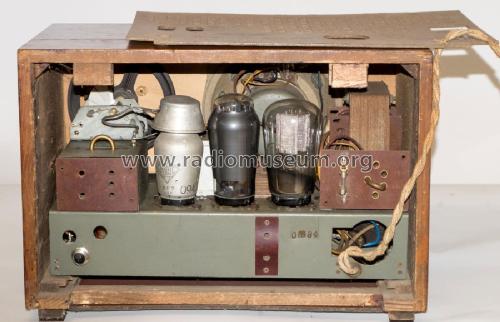

Valves / Tubes 3: AF7 AL4 AZ1
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 3/47W - EAK, Elektro-Apparatefabrik
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 340 x 225 x 220 mm / 13.4 x 8.9 x 8.7 inch
Notes

Spulensatz ES1 von Görler.

Net weight (2.2 lb = 1 kg) 5.6 kg / 12 lb 5.4 oz (12.335 lb)
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange-Nowisch
Mentioned in Historische Radios Band IV (155)


All listed radios etc. from EAK, Elektro-Apparatefabrik Köppelsdorf, ex AEG (Sonneberg)
Here you find 32 models, 28 with images and 26 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
