Super 5/47W II (5/47 W 2)

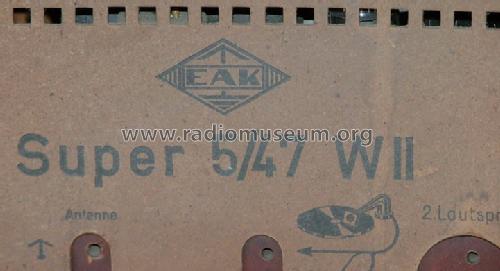

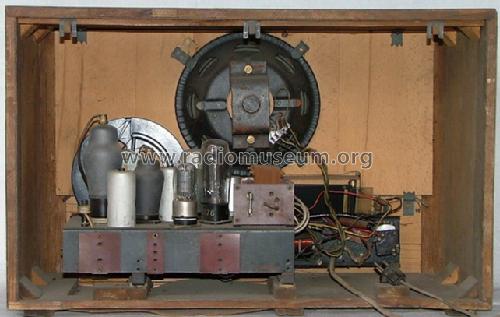

Super 5/47W II ; EAK, Elektro- (ID = 17573) Radio

Super 5/47W II ; EAK, Elektro- (ID = 804905) Radio

Super 5/47W II ; EAK, Elektro- (ID = 804907) Radio

Super 5/47W II ; EAK, Elektro- (ID = 804909) Radio
Super 5/47W II ; EAK, Elektro- (ID = 109109) Radio Super 5/47W II ; EAK, Elektro- (ID = 109111) Radio
Super 5/47W II ; EAK, Elektro- (ID = 109113) Radio Super 5/47W II ; EAK, Elektro- (ID = 109110) Radio
Super 5/47W II ; EAK, Elektro- (ID = 267734) Radio Super 5/47W II ; EAK, Elektro- (ID = 267736) Radio
Super 5/47W II ; EAK, Elektro- (ID = 267737) Radio Super 5/47W II ; EAK, Elektro- (ID = 1195640) Radio
Super 5/47W II ; EAK, Elektro- (ID = 1195642) Radio
Use red slider bar for more.
Super 5/47W II ; EAK, Elektro- (ID = 109109) Radio
EAK, Elektro-: Super 5/47W II [Radio] ID = 109109 682x482
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super 5/47W II (5/47 W 2), EAK, Elektro-Apparatefabrik Köppelsdorf, ex AEG (Sonneberg):
Kaunas, Lithuania

Country:  Germany
Manufacturer / Brand:  EAK, Elektro-Apparatefabrik Köppelsdorf, ex AEG (Sonneberg)
Year: 1947/1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ACH1 AF3 ABC1 AL4 AZ11
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 220, 250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Super 5/47W II - EAK, Elektro-Apparatefabrik
Material Wooden case
Shape Tablemodel, low profile (big size).
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange-Nowisch
