Echophone AWZ 1 (helle Skala)

Echophone AWZ 1 ; Echophone, Marke ab (ID = 1571375) Radio Echophone AWZ 1 ; Echophone, Marke ab (ID = 1571378) Radio
Echophone AWZ 1 ; Echophone, Marke ab (ID = 1571377) Radio Echophone AWZ 1 ; Echophone, Marke ab (ID = 1553) Radio
Echophone AWZ 1 ; Echophone, Marke ab (ID = 1571376) Radio
Use red slider bar for more.
Echophone AWZ 1 ; Echophone, Marke ab (ID = 1571375) Radio

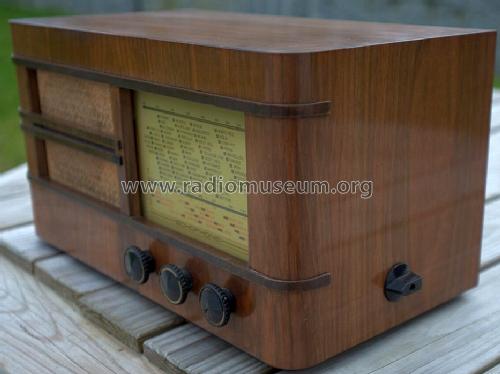

Echophone, Marke ab: Echophone AWZ 1 [Radio] ID = 1571375 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Echophone AWZ 1 (helle Skala), Echophone, Marke (ab 1937) von Apco AG; Zürich:
Das Modell hat die 'Stiftung Radiomuseum Luzern' von Pierre Rügländer, Luzern, am 1. Dezember 2013 erhalten.

Country:  Switzerland
Manufacturer / Brand:  Echophone, Marke (ab 1937) von Apco AG; Zürich
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ACH1 AF3 ABL1 AZ1
Main principle Superheterodyne (common); ZF/IF 471 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: Echophone AWZ 1 - Echophone, Marke ab 1937 von
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

Fabr.CH bei Albis (AWZ) - auch das gleiche Modell mit dunkler Skala.

Price in first year of sale 275.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Die Tungsram-Tabellen führen das Modell auf.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
