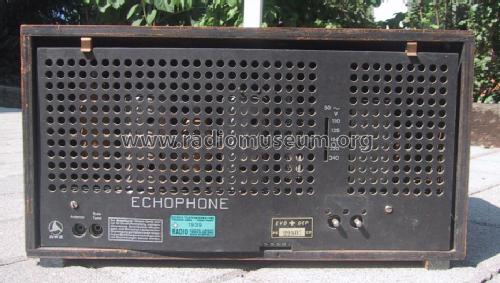

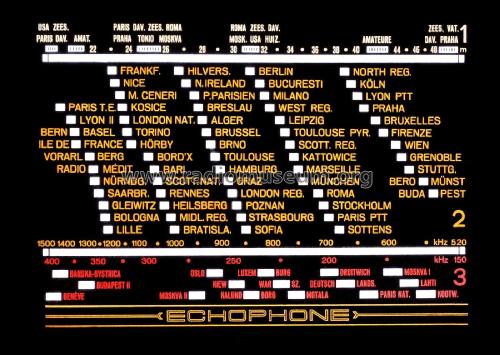

Echophone AWZ 2 (dunkle Skala)

Echophone AWZ 2 ; Echophone, Marke ab (ID = 22513) Radio Echophone AWZ 2 ; Echophone, Marke ab (ID = 22514) Radio
Echophone AWZ 2 ; Echophone, Marke ab (ID = 22515) Radio Echophone AWZ 2 ; Echophone, Marke ab (ID = 22516) Radio
Echophone AWZ 2 ; Echophone, Marke ab (ID = 22517) Radio Echophone AWZ 2 ; Echophone, Marke ab (ID = 22518) Radio
Use red slider bar for more.
Echophone AWZ 2 ; Echophone, Marke ab (ID = 22513) Radio
Echophone, Marke ab: Echophone AWZ 2 [Radio] ID = 22513 933x590
Select picture or schematic to display from thumbnails on the right and click for download.
For model Echophone AWZ 2 (dunkle Skala), Echophone, Marke (ab 1937) von Apco AG; Zürich

Country:  Switzerland
Manufacturer / Brand:  Echophone, Marke (ab 1937) von Apco AG; Zürich
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ACH1 AF3 ABL1 AZ1
Main principle Superheterodyne (common); ZF/IF 471 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: Echophone AWZ 2 - Echophone, Marke ab 1937 von
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

2 Gehäusevarianten (+Fr. 8.--). Siehe auch das Modell 1 mit heller Skala.

Price in first year of sale 315.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Die Tungsram-Tabellen führen das Modell auf.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
